Suncor Grade 316-NM Stainless Steel Chain Shackle Body

Suncor Grade 316-NM Stainless Steel Chain Shackle Body

SKU:STA-47b1a8

Premium Suncor stainless steel chain shackle body for secure, reliable connections up to 4,000 lb WLL, compatible with Shackle Bolt.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Suncor Grade 316-NM Stainless Steel Chain Shackle Body

Suncor Grade 316-NM Stainless Steel Chain Shackle Body

$34.99

Quantity: 1

Claim Your Seller Account

Suncor Grade 316-NM Stainless Steel Chain Shackle Body

Suncor Grade 316-NM Stainless Steel Chain Shackle Body

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

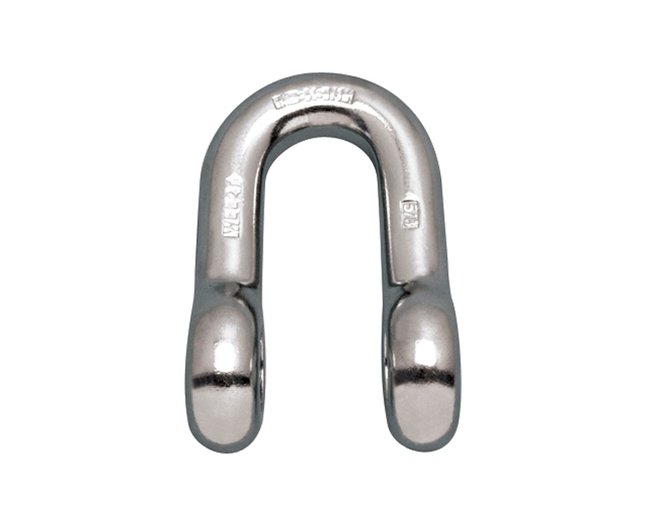

The Suncor Grade 316-NM Stainless Steel Chain Shackle Body is a premium unthreaded component precision-marked for safety up to a Working Load Limit (WLL) of 4,000 lb. Made in compliance with stringent industry standards, this drop-forged shackle body offers exceptional durability and reliability, suitable for diverse applications. Available in sizes ranging from 1/4" to 1", it seamlessly integrates as a replacement part and pairs perfectly with the Shackle Bolt, ensuring secure connections and peace of mind.

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
0.77 in
Specifications Dimension C
1.06 in
Specifications Dimension D
3.68 in
Specifications Dimension X
1.44 in
Specifications Dimension Y
3.61 in
Specifications Dimension Z
2.33 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.74 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
