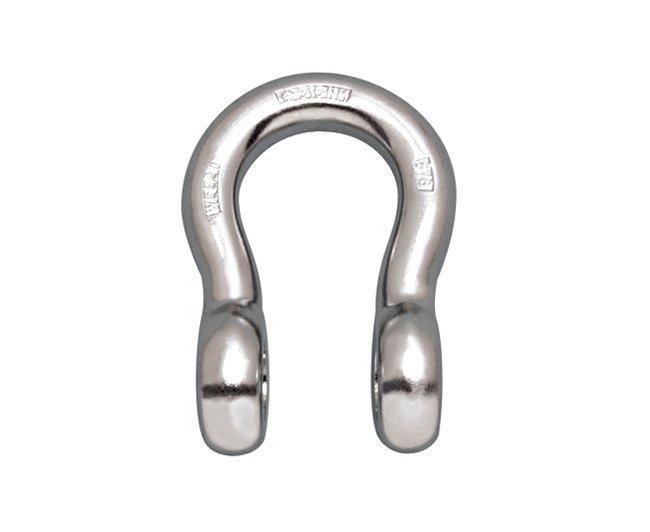

Suncor Grade 316 Stainless Steel Anchor Shackle Body

Name: Suncor Grade 316 Stainless Steel Anchor Shackle Body
Brand: Suncor Stainless, Inc.
SKU: STA-111144
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-111144

Upgrade your rigging system with the durable Suncor Grade 316 Stainless Steel Anchor Shackle Body, marked for easy identification and designed for a working load limit of 4,000 lb.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your rigging system with the Suncor Grade 316 Stainless Steel Anchor Shackle Body. This unthreaded body is precision-marked for easy identification of its working load limit of 4,000 lb, meeting stringent industry standards. Crafted with drop-forged 316-NM stainless steel, it ensures exceptional durability and corrosion resistance. Available in various sizes, this shackle body is a versatile replacement part compatible with the Shackle Bolt, perfect for demanding applications requiring top-notch performance and reliability.

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

0.77 in

Specifications Dimension C

1.06 in

Specifications Dimension D

1.69 in

Specifications Dimension E

4.19 in

Specifications Dimension X

1.46 in

Specifications Dimension Y

4.13 in

Specifications Dimension Z

2.84 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

0.90 lb

Specifications Working Load Limit Wll

4,000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

Suncor Grade 316 Stainless Steel Anchor Shackle Body
