Suncor Grade 316 Stainless Steel Bolt Anchor Shackle

Suncor Grade 316 Stainless Steel Bolt Anchor Shackle

SKU:STA-3964e8

Premium Suncor stainless steel bolt anchor shackle for secure and reliable marine connections, WLL 1500 lb.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Grade 316 Stainless Steel Bolt Anchor Shackle

Suncor Grade 316 Stainless Steel Bolt Anchor Shackle

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Grade 316 Stainless Steel Bolt Anchor Shackle

Suncor Grade 316 Stainless Steel Bolt Anchor Shackle

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

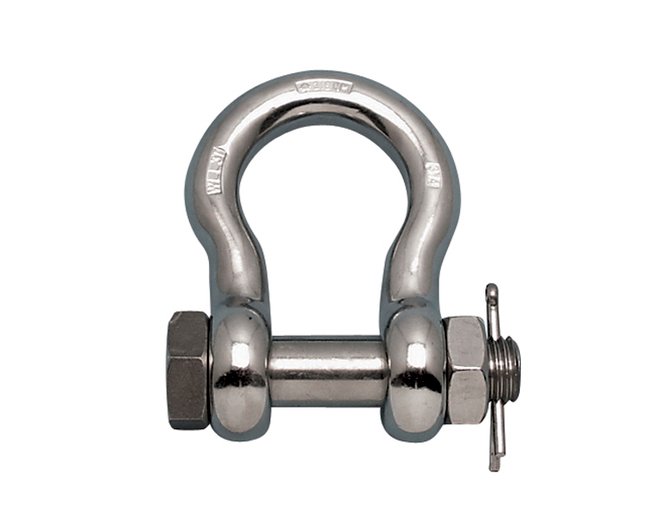

The Suncor Grade 316 Stainless Steel Bolt Anchor Shackle is designed for heavy-duty use in saltwater environments. Featuring a durable drop-forged construction, this anchor shackle with an oversize bolt ensures secure connection between the anchor and chain/swivel. With a Working Load Limit (WLL) of 1500 lb, this Suncor-exclusive shackle meets stringent standards including ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and Type IVA. Perfect for marine applications, this shackle offers reliability and strength crucial for maritime operations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

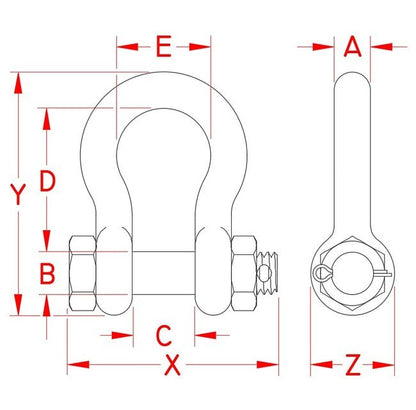

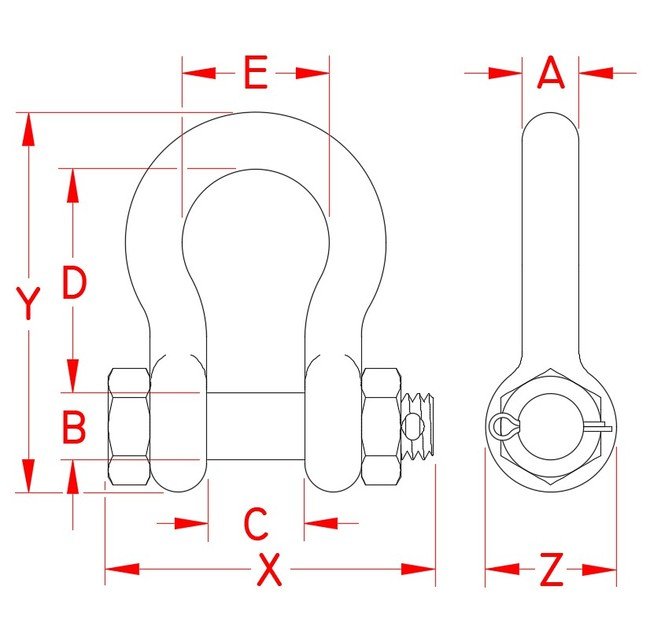

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
0.44 in
Specifications Dimension C
0.66 in
Specifications Dimension D
1.41 in
Specifications Dimension E
1.00 in
Specifications Dimension X
2.24 in
Specifications Dimension Y
2.40 in
Specifications Dimension Z
0.89 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.32 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
