Suncor Grade 316 Stainless Steel Forged Turnbuckle Body
Suncor Grade 316 Stainless Steel Forged Turnbuckle Body
SKU:STA-3f60b1
High-quality Suncor Grade 316 Stainless Steel Forged Turnbuckle Body for marine and industrial use. WLL: 17,000 lb. Meets ASTM F1145-92 Type 1.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

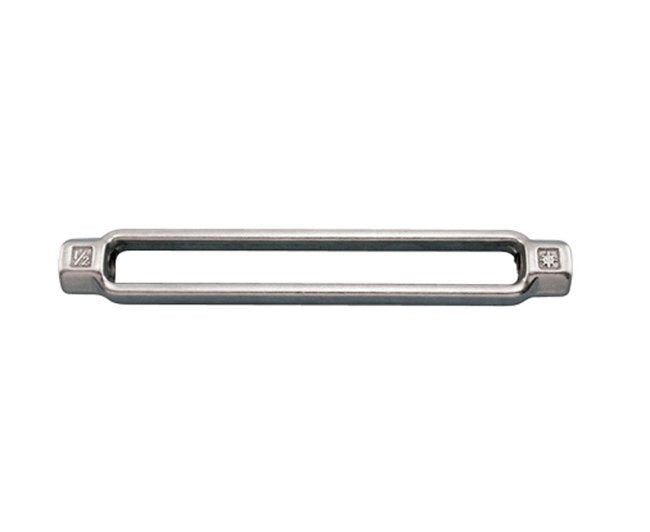

The Suncor Grade 316 Stainless Steel Forged Turnbuckle Body is a high-quality component designed for marine and industrial applications. Crafted from drop forged 316-NM stainless steel, this turnbuckle body offers exceptional corrosion resistance and durability. With a Working Load Limit (WLL) of 17,000 lb and dimensions meeting ASTM F1145-92 Type 1 specifications, this Suncor exclusive product ensures reliability and safety in various projects.
Product Specifications

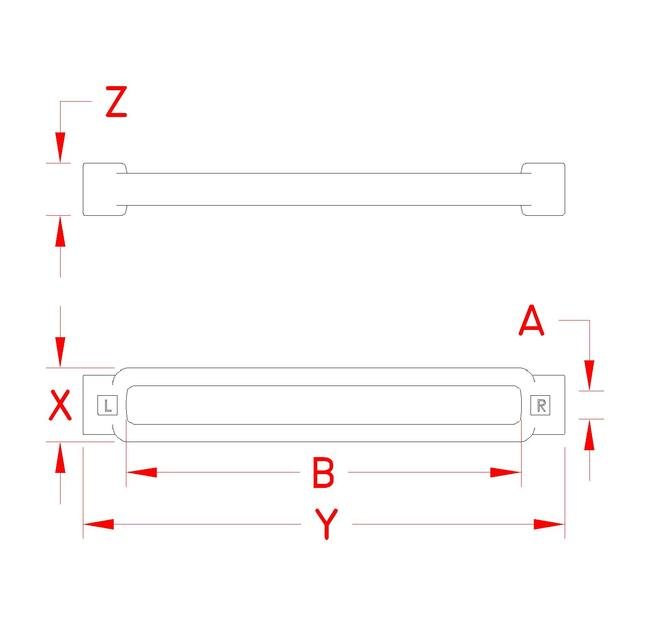

Specifications Dimension A
1-1/2 in
Specifications Dimension B
12.00 in
Specifications Dimension X
3.20 in
Specifications Dimension Y
15.75 in
Specifications Dimension Z
2.27 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASTM F1145-92 | MIL-DTL-32655 | Type 1
Specifications Suncor Exclusive
Yes
Specifications Weight
9.30 lb
Specifications Working Load Limit Wll
17,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
