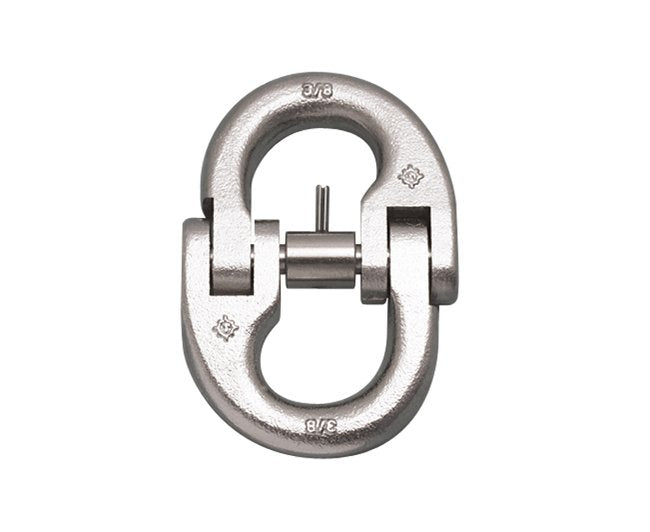

Suncor Hammerlock Link 5/16 in, 316-NM stainless steel, MIL-DTL-32655
Suncor Hammerlock Link 5/16 in, 316-NM stainless steel, MIL-DTL-32655
SKU:STA-c016b6
Suncor's high-strength Hammerlock Link, forged from 316-NM stainless steel, exceeds industry standards with a 2,700 lb load limit and MIL-DTL-32655 compliance.
Regular price

            $24.99


          Regular price






          Sale price

          $24.99



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Suncor Hammerlock Link is a superior choice for applications requiring high strength and durability. Made from grade 316-NM stainless steel, these drop forged links offer maximum corrosion resistance. With a working load limit of 2,700 lb and MIL-DTL-32655 specification, Suncor's Hammerlock Links exceed industry standards. Each set includes replacement pin sets for easy maintenance, ensuring reliability in critical operations.

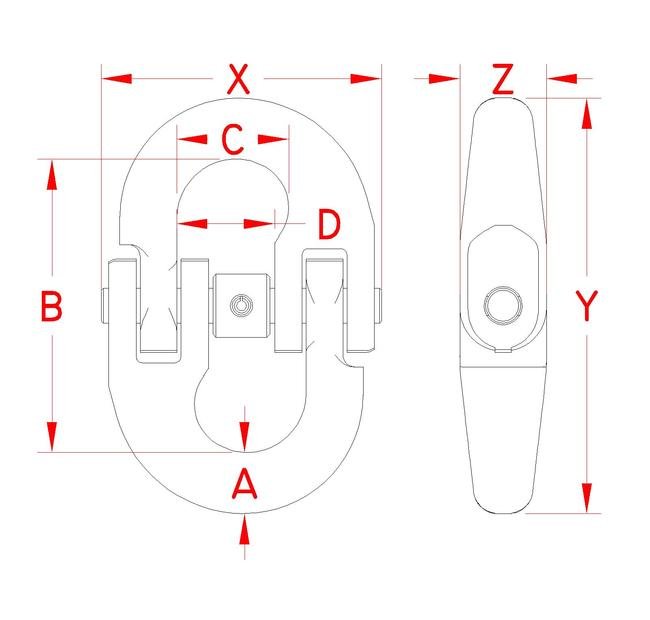

Product Specifications
                  Specifications Dimension A

                0.42 in

                  Specifications Dimension B

                2.16 in

                  Specifications Dimension C

                0.73 in

                  Specifications Dimension D

                0.66 in

                  Specifications Dimension X

                1.88 in

                  Specifications Dimension Y

                2.96 in

                  Specifications Dimension Z

                0.56 in

                  Specifications Fabrication Type

                Drop Forged

                  Specifications Load Rated

                Yes

                  Specifications Made In

                Import

                  Specifications Material

                316-NM Stainless Steel

                  Specifications Mil Spec

                Yes

                  Specifications Size

                5/16 in

                  Specifications Specification

                MIL-DTL-32655

                  Specifications Suncor Exclusive

                Yes

                  Specifications Weight

                0.39 lb

                  Specifications Working Load Limit Wll

                2,700 lb

                  CAGE

                1CXX6

                  NAICS

                332999

                  PSC

                4030
