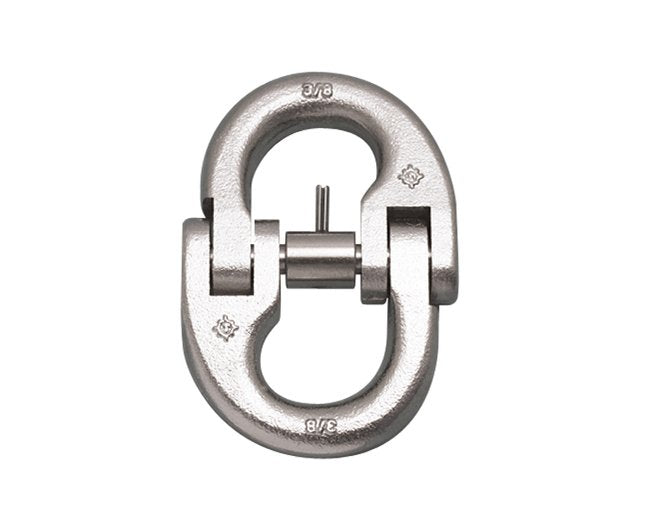

Suncor Hammerlock Link - Grade 316-NM Stainless Steel, Drop Forged, MIL-DTL-32655 Compliant
Suncor Hammerlock Link - Grade 316-NM Stainless Steel, Drop Forged, MIL-DTL-32655 Compliant
SKU:STA-4c031b
High-strength Suncor Hammerlock Link - grade 316-NM stainless steel, MIL-DTL-32655 compliant. Drop forged for durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Hammerlock Link is engineered for high-strength applications, crafted from grade 316-NM stainless steel to ensure exceptional corrosion resistance and durability. This link is drop forged with a Working Load Limit (WLL) of 7,300 lb, meeting MIL-DTL-32655 specifications, making it ideal for demanding industrial settings. Each set includes the pin, bushing, and roll pin for convenient replacement, ensuring uninterrupted functionality under rigorous conditions.

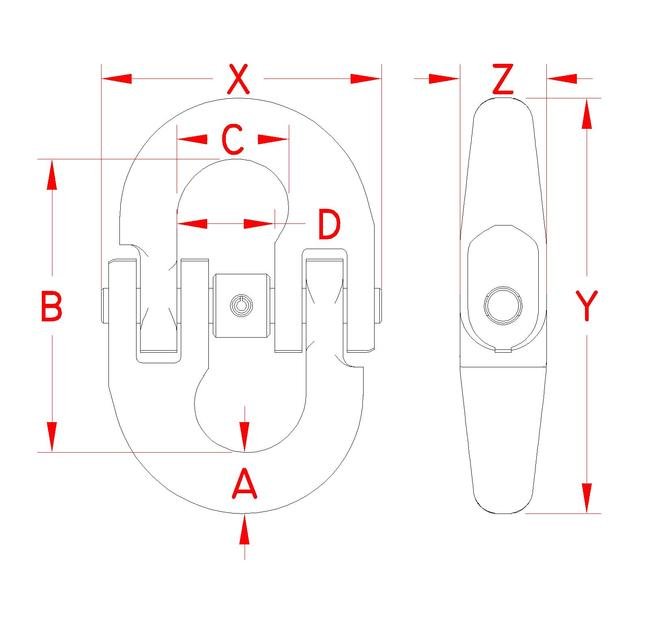

Product Specifications
Specifications Dimension A
0.65 in
Specifications Dimension B
3.48 in
Specifications Dimension C
1.35 in
Specifications Dimension D
1.16 in
Specifications Dimension X
3.06 in
Specifications Dimension Y
4.60 in
Specifications Dimension Z
1.00 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Size
1/2 in
Specifications Specification
MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
1.86 lb
Specifications Working Load Limit Wll
7,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
