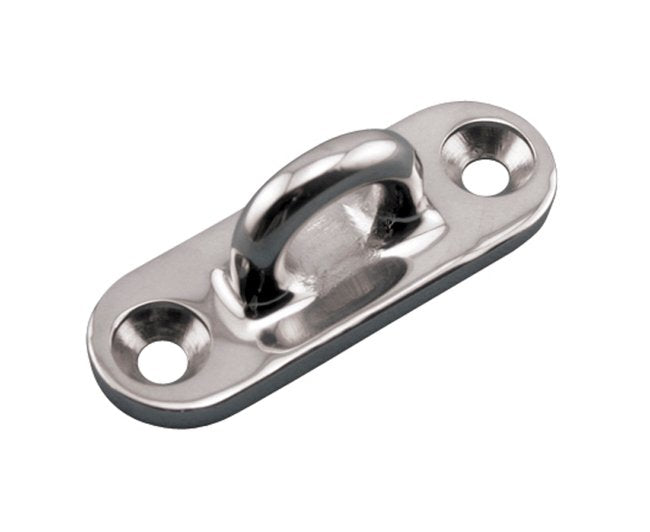

Suncor Heavy Duty Oblong Pad Eye - 3 Inch, Grade 316 Stainless Steel
Suncor Heavy Duty Oblong Pad Eye - 3 Inch, Grade 316 Stainless Steel
SKU:STA-d7a528
Premium 3in Grade 316 Stainless Steel Pad Eye for marine, industrial, and government applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Suncor Heavy Duty Oblong Pad Eye is a premium choice for marine, industrial, architectural, OEM, and government applications. Crafted from high-grade 316 stainless steel, this oblong pad eye offers unparalleled corrosion resistance and exceptional durability in challenging environments. With a precise cast design and a working load limit of 1000 lb, this pad eye ensures reliable performance under heavy loads. Trust in the quality and reliability of Suncor for your most demanding projects.
Product Specifications

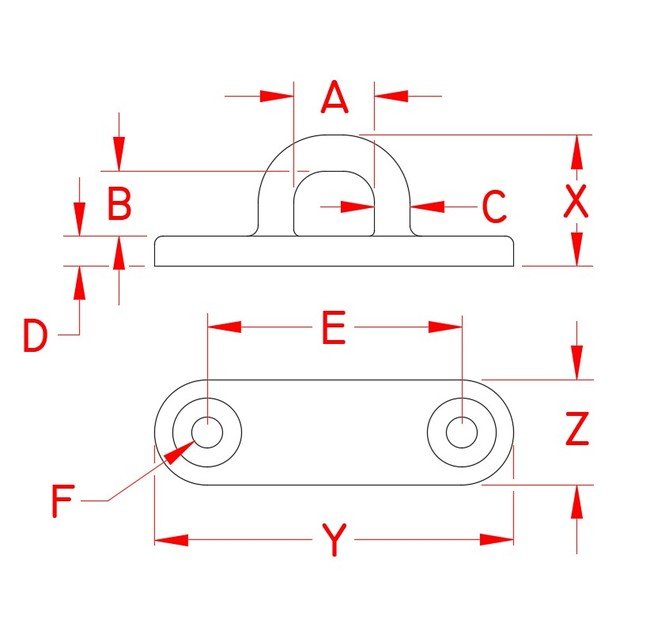

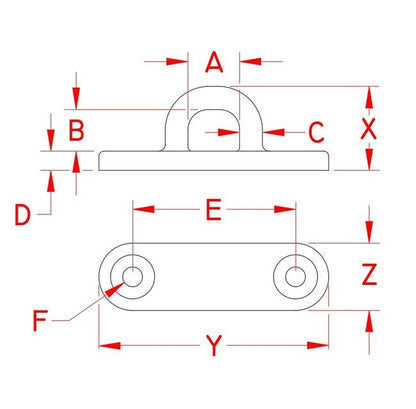

Specifications Dimension A
0.63 in
Specifications Dimension B
0.53 in
Specifications Dimension C
0.31 in
Specifications Dimension D
0.24 in
Specifications Dimension E
2.12 in
Specifications Dimension F
0.24 in
Specifications Dimension X
1.08 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
0.85 in
Specifications Fabrication Type
Precision Cast
Specifications Fastener
#14
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Size
3 in
Specifications Weight
0.15 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332510
PSC
5340
