Suncor Heavy Duty Special Eye Bolt 316 Stainless Steel UNC Thread

Suncor Heavy Duty Special Eye Bolt 316 Stainless Steel UNC Thread

SKU:STA-76540a

Secure heavy loads with the Suncor Heavy Duty Eye Bolt. Crafted from 316 stainless steel, it offers durability and corrosion resistance.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Suncor Heavy Duty Special Eye Bolt 316 Stainless Steel UNC Thread

Suncor Heavy Duty Special Eye Bolt 316 Stainless Steel UNC Thread

$12.99

Quantity: 1

Claim Your Seller Account

Suncor Heavy Duty Special Eye Bolt 316 Stainless Steel UNC Thread

Suncor Heavy Duty Special Eye Bolt 316 Stainless Steel UNC Thread

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

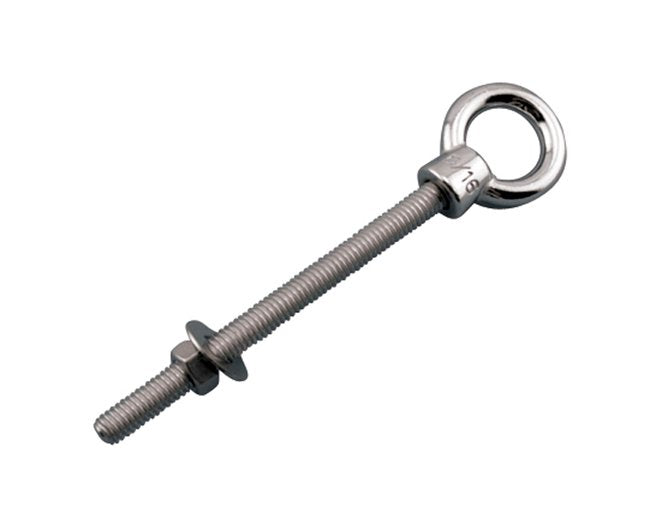

Engineered for heavy-duty applications, the Suncor Heavy Duty Special Eye Bolt is a durable solution crafted from grade 316 stainless steel to resist corrosion. Featuring a fully threaded rod welded into an eye nut, this bolt ensures secure load-bearing with a Working Load Limit (WLL) of 1000 lb. Precision cast and machined for superior quality, it comes with one nut and washer. Available in various sizes from 1/4" to 1", this eye bolt is a reliable choice for both commercial and industrial projects.

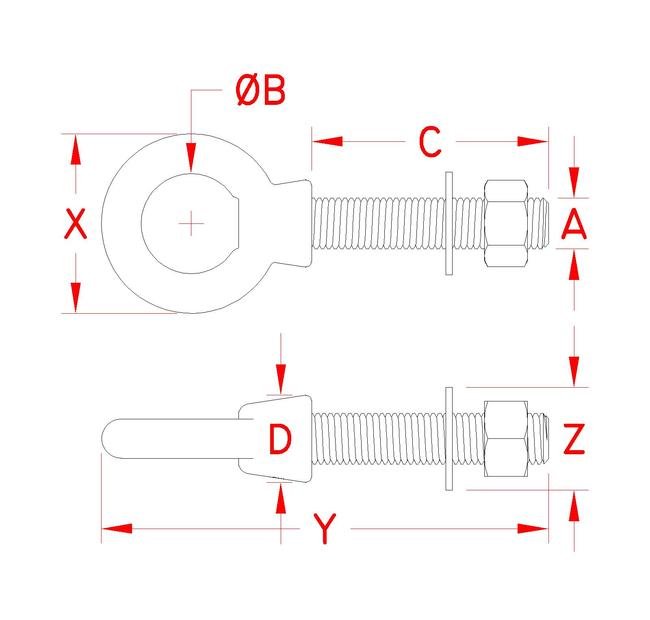

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
0.97 in
Specifications Dimension C
5.00 in
Specifications Dimension D
0.76 in
Specifications Dimension X
1.60 in
Specifications Dimension Y
7.02 in
Specifications Dimension Z
0.88 in
Specifications Fabrication Type
Precision Cast | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.29 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
