Suncor Metric Lifting Eye Nut - 316-NM Stainless Steel, M10
Suncor Metric Lifting Eye Nut - 316-NM Stainless Steel, M10
SKU:STA-bdd58e
Premium Suncor Metric Lifting Eye Nut in M10 size, 316-NM Stainless Steel, WLL 1,160 lb, ASME B30.26 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Metric Lifting Eye Nut - 316-NM Stainless Steel, M10
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Metric Lifting Eye Nut - 316-NM Stainless Steel, M10
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Metric Lifting Eye Nut in M10 size is expertly crafted from grade 316-NM stainless steel, ensuring exceptional corrosion resistance and durability suitable for marine and industrial use. This drop-forged eye nut offers a Working Load Limit (WLL) of 1,160 lb, meeting ASME B30.26 specifications. With precision metric threads and Suncor exclusivity, this eye nut is ideal for secure lifting applications in diverse environments.

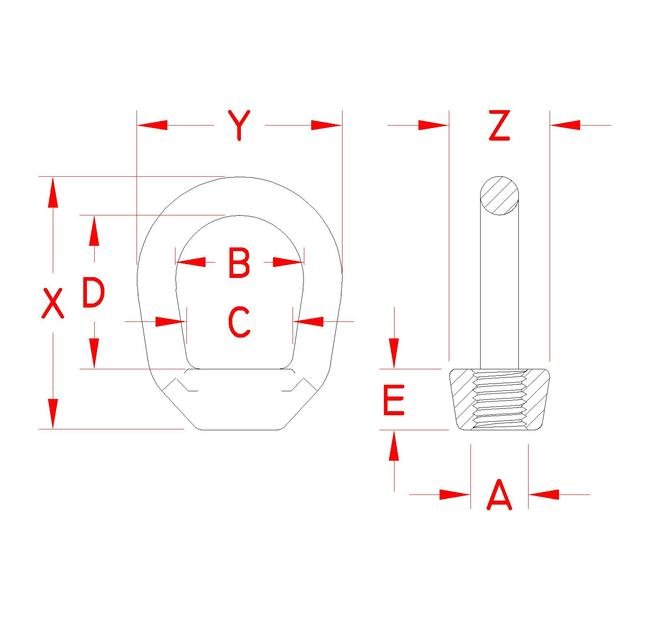

Product Specifications
Specifications Dimension A
M10
Specifications Dimension B
1.25 in
Specifications Dimension C
1.00 in
Specifications Dimension D
1.50 in
Specifications Dimension E
0.63 in
Specifications Dimension X
2.50 in
Specifications Dimension Y
2.00 in
Specifications Dimension Z
0.93 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.31 lb
Specifications Working Load Limit Wll
1,160 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
