Suncor Metric Lifting Eye Nut | Grade 316-NM Stainless Steel
Suncor Metric Lifting Eye Nut | Grade 316-NM Stainless Steel
SKU:STA-bfb5a8
Premium Suncor Metric Lifting Eye Nut in grade 316-NM stainless steel. ASME B30.26 compliant with 460 lb WLL.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Suncor Metric Lifting Eye Nut | Grade 316-NM Stainless Steel
$14.99
Quantity: 1
Claim Your Seller Account
Suncor Metric Lifting Eye Nut | Grade 316-NM Stainless Steel
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

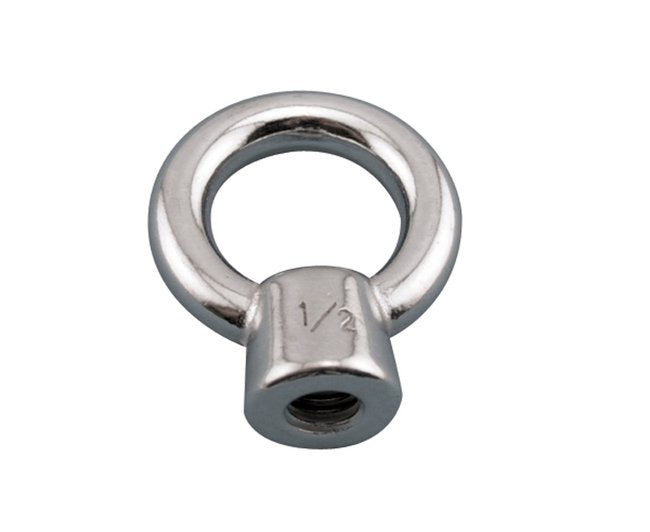

The Suncor Metric Lifting Eye Nut in sizes M6 to M18 offers superior corrosion resistance and durability for marine and industrial use. Constructed from 316-NM stainless steel, this eye nut is drop forged and ASME B30.26 compliant. With a 460 lb Working Load Limit (WLL), it meets stringent industry standards for reliability and safety.

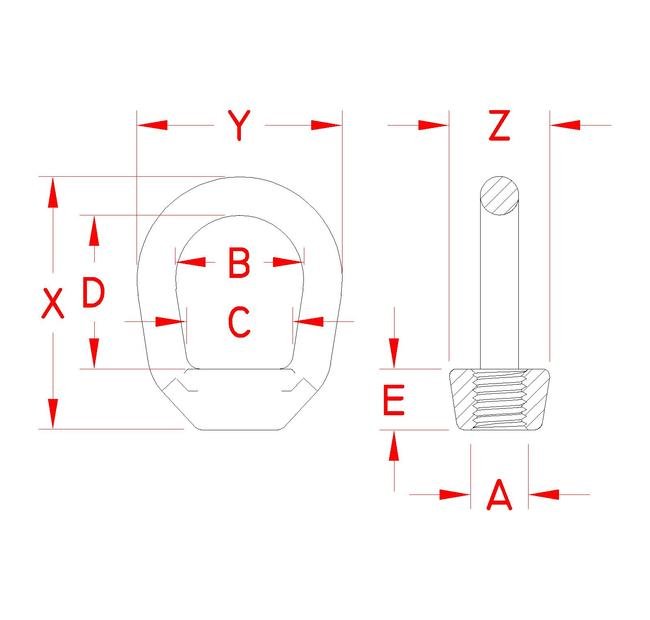

Product Specifications
Specifications Dimension A
M6
Specifications Dimension B
0.75 in
Specifications Dimension C
0.59 in
Specifications Dimension D
1.06 in
Specifications Dimension E
0.38 in
Specifications Dimension X
1.70 in
Specifications Dimension Y
1.26 in
Specifications Dimension Z
0.58 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.08 lb
Specifications Working Load Limit Wll
460 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
