Suncor Metric Lifting Eye Nut M12 316-NM Stainless Steel

Name: Suncor Metric Lifting Eye Nut M12 316-NM Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-ee4112
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-ee4112

Premium Suncor Metric Lifting Eye Nut in M12 size, ASME B30.26 compliant, with 2,150 lb WLL.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your lifting solutions with the Suncor Metric Lifting Eye Nut in size M12. Constructed from grade 316-NM stainless steel, this eye nut offers exceptional corrosion resistance, ideal for marine and industrial settings. Built to ASME B30.26 standards, the drop-forged design ensures durability and a working load limit of 2,150 lb. Trust in Suncor's excellence for your lifting needs.

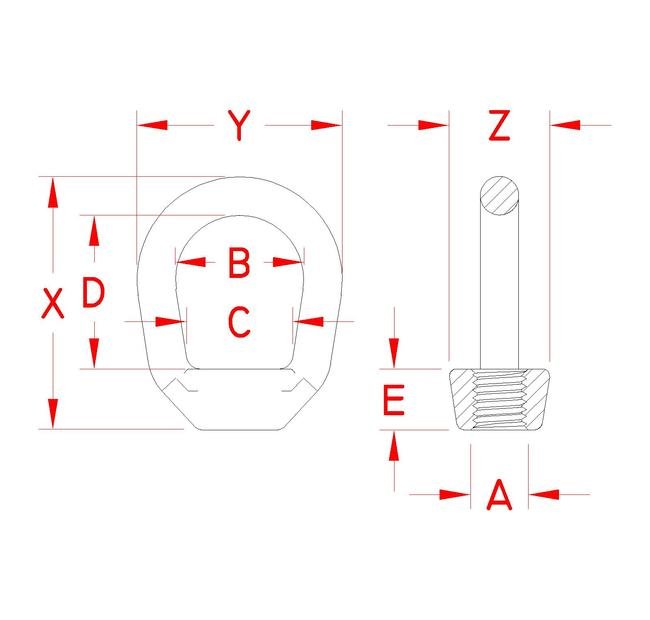

Product Specifications

Specifications Dimension A

M12

Specifications Dimension B

1.25 in

Specifications Dimension C

1.00 in

Specifications Dimension D

1.50 in

Specifications Dimension E

0.63 in

Specifications Dimension X

2.50 in

Specifications Dimension Y

2.00 in

Specifications Dimension Z

0.93 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26

Specifications Suncor Exclusive

Yes

Specifications Weight

0.27 lb

Specifications Working Load Limit Wll

2,150 lb

CAGE

1CXX6

NAICS

332722

PSC

5310
