Suncor Metric Lifting Eye Nut M16

Suncor Metric Lifting Eye Nut M16

SKU:STA-887d55

Premium Suncor Metric Lifting Eye Nut M16: 316-NM Stainless Steel, ASME B30.26 Compliant, 3,440 lb WLL

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Metric Lifting Eye Nut M16

Suncor Metric Lifting Eye Nut M16

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Lifting Eye Nut M16

Suncor Metric Lifting Eye Nut M16

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ideal for marine and industrial applications, the Suncor Metric Lifting Eye Nut M16 is crafted from grade 316-NM stainless steel for exceptional corrosion resistance and durability. This drop forged eye nut, meeting ASME B30.26 specifications, ensures a reliable working load limit of 3,440 lb. With metric threads and Suncor exclusivity, this eye nut is a premium choice for heavy-duty lifting tasks.

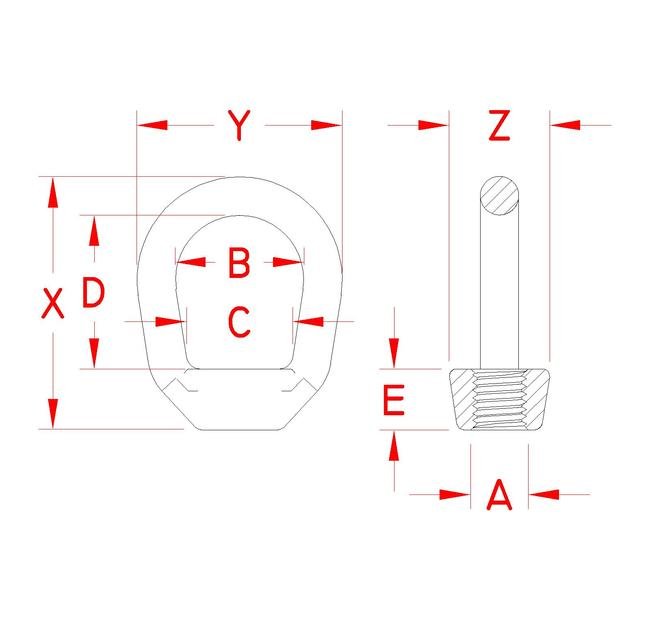

Product Specifications

Specifications Dimension A
M16
Specifications Dimension B
1.50 in
Specifications Dimension C
1.19 in
Specifications Dimension D
2.00 in
Specifications Dimension E
0.69 in
Specifications Dimension X
3.18 in
Specifications Dimension Y
2.50 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.59 lb
Specifications Working Load Limit Wll
3,440 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
