Suncor Metric Lifting Eye Nut M18
Suncor Metric Lifting Eye Nut M18
SKU:STA-130e9a
Premium grade 316-NM stainless steel Metric Lifting Eye Nut for safe and durable lifting. WLL of 5,140 lb. ASME B30.26 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor Metric Lifting Eye Nut M18
$29.99
Quantity: 1
Claim Your Seller Account
Suncor Metric Lifting Eye Nut M18
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Metric Lifting Eye Nut M18 is a superior choice for marine and industrial applications. Crafted from grade 316-NM stainless steel, this drop-forged eye nut offers exceptional corrosion resistance. With a Working Load Limit (WLL) of 5,140 lb, it ensures reliable and safe lifting operations. Compliant with ASME B30.26 standards, this metric eye nut is a durable and trust-worthy solution for your lifting needs.
Product Specifications

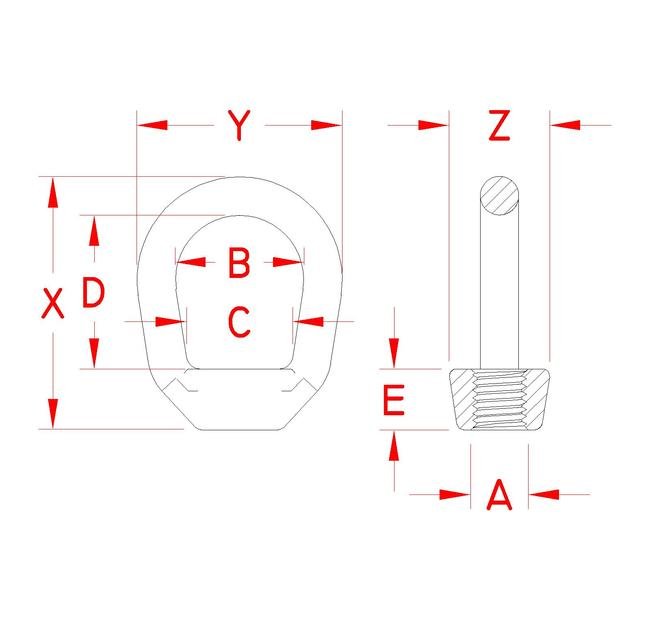

Specifications Dimension A
M18
Specifications Dimension B
1.75 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.38 in
Specifications Dimension E
0.88 in
Specifications Dimension X
3.82 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
1.30 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.97 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
