Suncor Metric Plain Eye Bolt - 316-NM Stainless Steel M12
Suncor Metric Plain Eye Bolt - 316-NM Stainless Steel M12
SKU:STA-20519e
Premium Suncor Metric Plain Eye Bolt for secure, durable installations meeting ASME B30.26 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Metric Plain Eye Bolt - 316-NM Stainless Steel M12
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Metric Plain Eye Bolt - 316-NM Stainless Steel M12
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

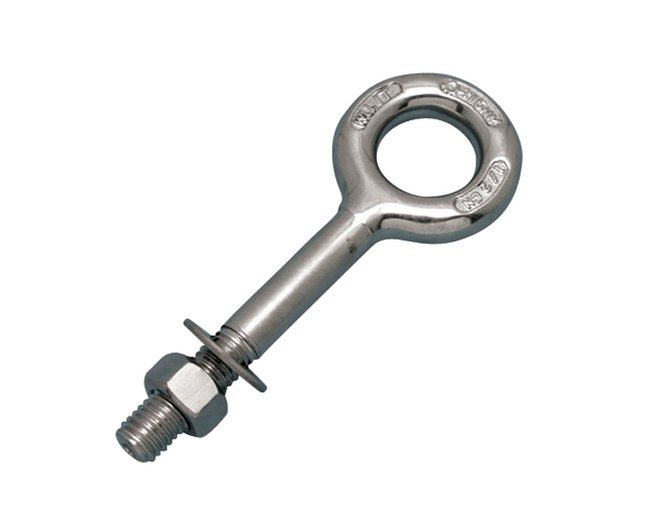

The Suncor Metric Plain Eye Bolt, made from high-grade 316-NM stainless steel, is precision machined for optimal performance. This eye bolt boasts a Working Load Limit (WLL) of 2,150 lb, meeting ASME B30.26 specifications. Designed with metric threads and forged markings, this bolt includes a nut and washer for installation ease. Trusted by institutions, it ensures a secure fit, durability, and reliability for a wide range of applications.

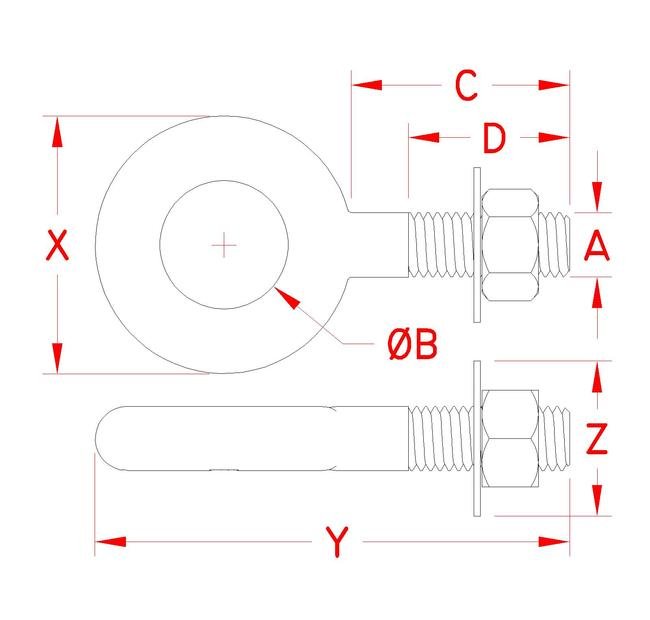

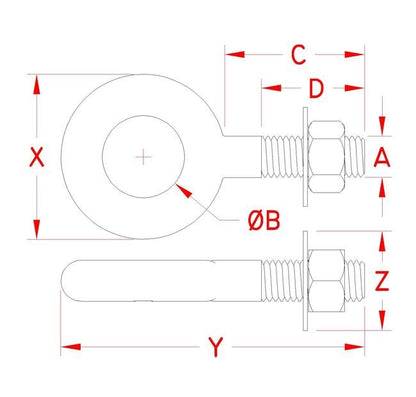

Product Specifications
Specifications Dimension A
M12
Specifications Dimension B
1.00 in
Specifications Dimension C
1.50 in
Specifications Dimension D
1.00 in
Specifications Dimension X
2.02 in
Specifications Dimension Y
3.65 in
Specifications Dimension Z
0.93 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.37 lb
Specifications Working Load Limit Wll
2,150 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
