Suncor Metric Plain Eye Bolt M12 - 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M12 - 316-NM Stainless Steel

SKU:STA-95c96b

Experience ultimate strength with the Suncor Metric Plain Eye Bolt M12 in 316-NM Stainless Steel. ASME B30.26 compliant, with a 2,150 lb WLL. Perfect for industrial and marine applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Metric Plain Eye Bolt M12 - 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M12 - 316-NM Stainless Steel

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Plain Eye Bolt M12 - 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M12 - 316-NM Stainless Steel

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

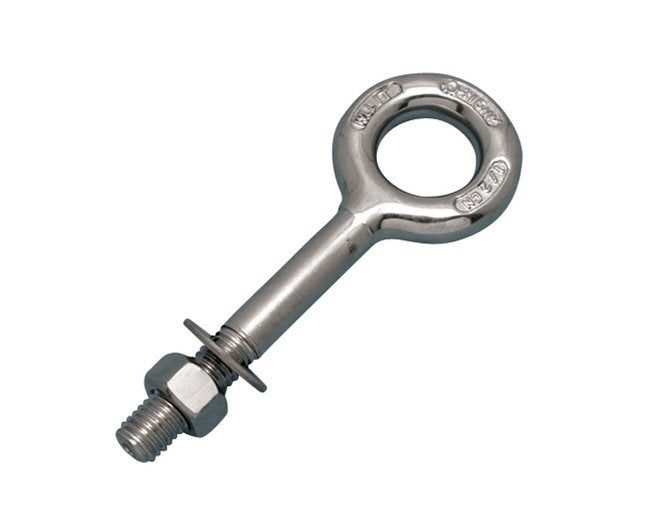

The Suncor Metric Plain Eye Bolt is precision-engineered for superior strength and durability. Made from 316-NM stainless steel, this eye bolt meets ASME B30.26 specifications, ensuring reliable performance in demanding applications. Featuring a working load limit of 2,150 lb, drop forged and precision machined for exceptional quality, it includes one nut and washer. Ideal for industrial rigging, marine, and construction use.

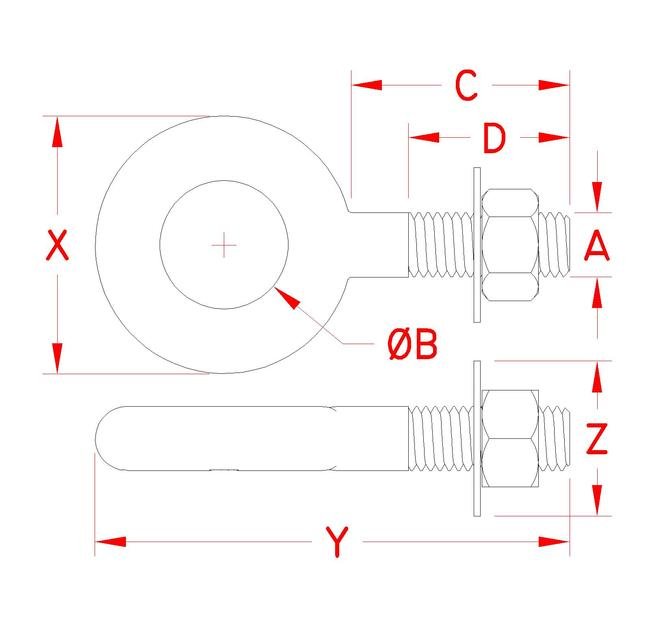

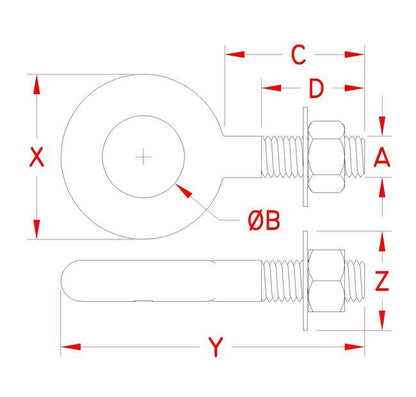

Product Specifications

Specifications Dimension A
M12
Specifications Dimension B
1.00 in
Specifications Dimension C
3.25 in
Specifications Dimension D
1.50 in
Specifications Dimension X
2.02 in
Specifications Dimension Y
5.40 in
Specifications Dimension Z
0.93 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.48 lb
Specifications Working Load Limit Wll
2,150 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
