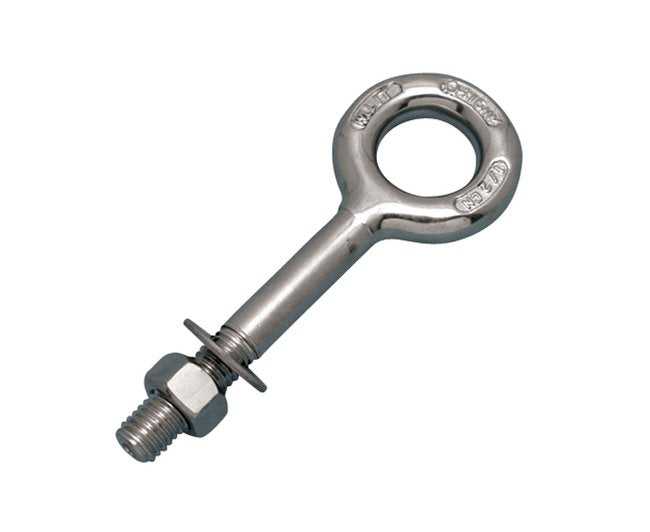

Suncor Metric Plain Eye Bolt M12 316-NM Stainless Steel WLL 2,150 lb
Suncor Metric Plain Eye Bolt M12 316-NM Stainless Steel WLL 2,150 lb
SKU:STA-ac0087
Premium Suncor Metric Plain Eye Bolt in 316-NM Stainless Steel with 2,150 lb WLL. ASME B30.26 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Suncor Metric Plain Eye Bolt is a premium solution for lifting applications, featuring precise dimensions and a high load capacity of 2,150 lb. Crafted from 316-NM stainless steel, this eye bolt is drop forged and precision machined for durability and reliability. Compliant with ASME B30.26 standards, it ensures safety and performance. Each bolt comes with a nut and washer, with additional stock available. Upgrade to Suncor quality for a secure and efficient lifting operation.
Product Specifications

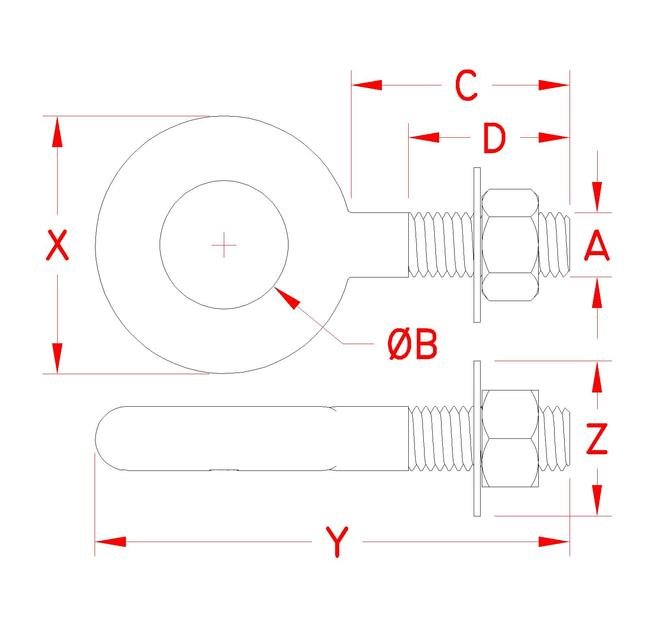

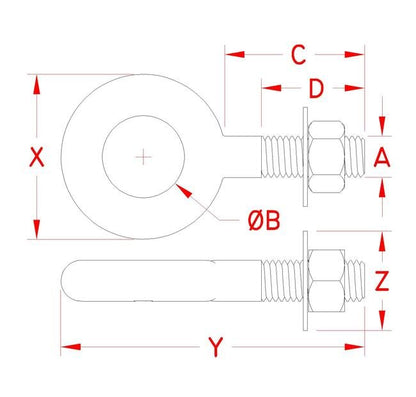

Specifications Dimension A
M12
Specifications Dimension B
1.00 in
Specifications Dimension C
6.00 in
Specifications Dimension D
3.00 in
Specifications Dimension X
2.02 in
Specifications Dimension Y
8.20 in
Specifications Dimension Z
0.93 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.59 lb
Specifications Working Load Limit Wll
2,150 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
