Suncor Metric Plain Eye Bolt M18 - 316-NM Stainless Steel, ASME B30.26

Suncor Metric Plain Eye Bolt M18 - 316-NM Stainless Steel, ASME B30.26

SKU:STA-6b645e

Premium Suncor Metric Plain Eye Bolt - 316-NM Stainless Steel, ASME B30.26 compliance

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Metric Plain Eye Bolt M18 - 316-NM Stainless Steel, ASME B30.26

Suncor Metric Plain Eye Bolt M18 - 316-NM Stainless Steel, ASME B30.26

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Plain Eye Bolt M18 - 316-NM Stainless Steel, ASME B30.26

Suncor Metric Plain Eye Bolt M18 - 316-NM Stainless Steel, ASME B30.26

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

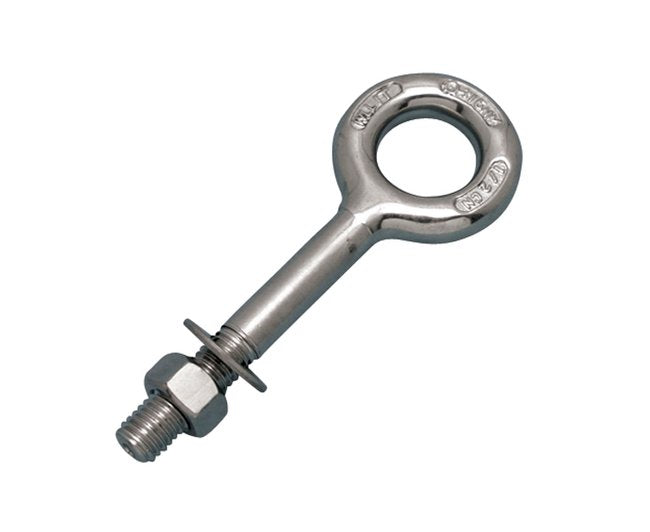

The Suncor Metric Plain Eye Bolt is a premium-grade fastening solution designed for heavy-duty applications. Crafted from 316-NM stainless steel, this eye bolt offers exceptional durability and corrosion resistance, ideal for marine, industrial, and critical environments. With a Working Load Limit of 5,140 lb, precision drop forging, and machined shaft for secure seating, this eye bolt ensures reliable performance and safety. Compliant with ASME B30.26 standards, this high-quality bolt is trusted for its load-rated construction, making it a top choice for projects requiring precision and strength.

Product Specifications

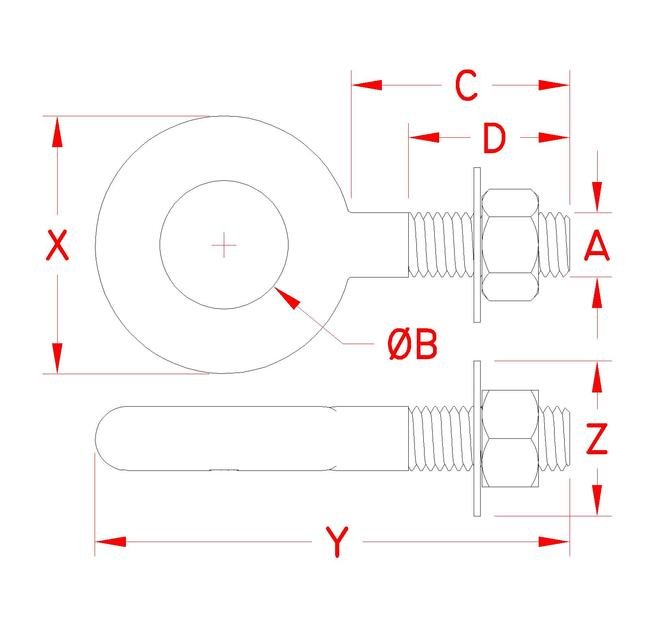

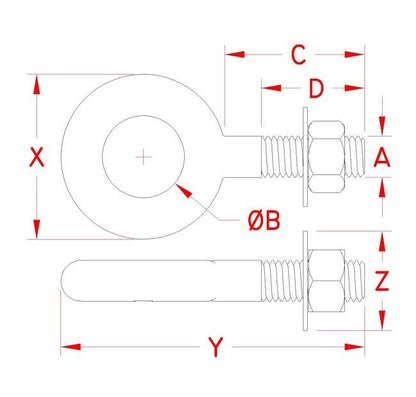

Specifications Dimension A
M18
Specifications Dimension B
1.50 in
Specifications Dimension C
1.00 in
Specifications Dimension D
1.00 in
Specifications Dimension X
2.90 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
1.32 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.94 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
