Suncor Metric Plain Eye Bolt M24 – 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M24 – 316-NM Stainless Steel

SKU:STA-1db727

Premium Suncor Metric Plain Eye Bolt – 316-NM Stainless Steel, ASME B30.26 compliant, 9,370 lb WLL

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Suncor Metric Plain Eye Bolt M24 – 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M24 – 316-NM Stainless Steel

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Plain Eye Bolt M24 – 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M24 – 316-NM Stainless Steel

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

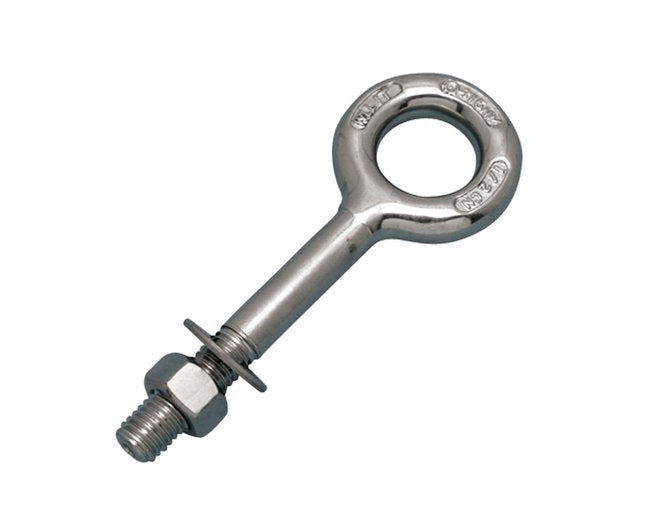

The Suncor Metric Plain Eye Bolt is a premium-grade industrial fastening solution designed for heavy-duty applications. Crafted from 316-NM stainless steel, this eye bolt offers exceptional durability, corrosion resistance, and a Working Load Limit (WLL) of 9,370 lb. Precision machined for a perfect fit, it features metric threads, ASME B30.26 compliance, and is load rated for added safety. Ideal for institutional and government buyers seeking top-quality eye bolts that meet stringent standards.

Product Specifications

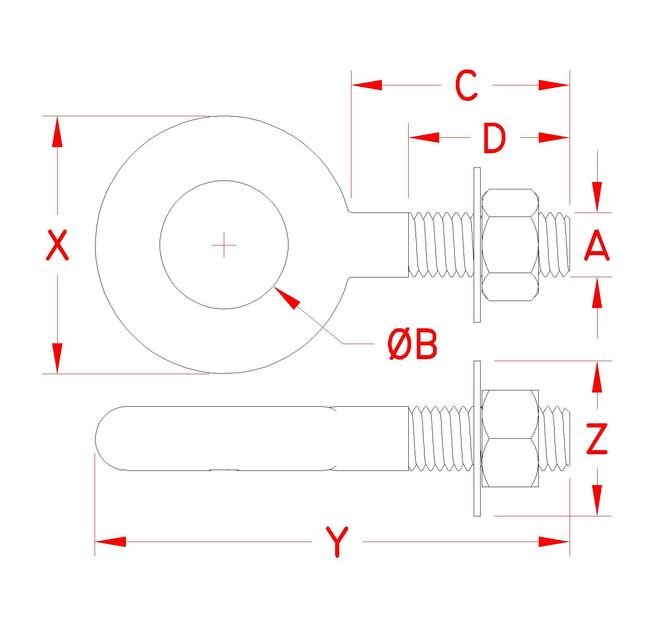

Specifications Dimension A
M24
Specifications Dimension B
2.00 in
Specifications Dimension C
1.38 in
Specifications Dimension D
1.38 in
Specifications Dimension X
4.00 in
Specifications Dimension Y
5.75 in
Specifications Dimension Z
1.72 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
2.75 lb
Specifications Working Load Limit Wll
9,370 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
