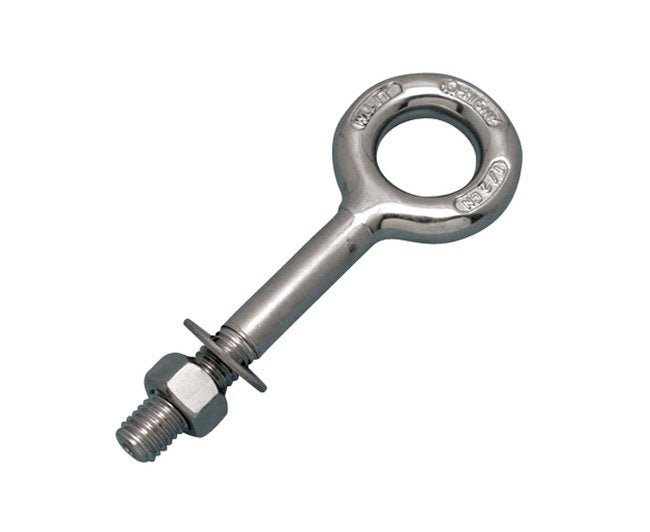

Suncor Metric Plain Eye Bolt M8 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M8 316-NM Stainless Steel

SKU:STA-46caf9

Top-quality Suncor Metric Stainless Steel Eye Bolt with 800 lb WLL, ASME B30.26 compliant for industrial-grade strength and safety.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Metric Plain Eye Bolt M8 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M8 316-NM Stainless Steel

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Plain Eye Bolt M8 316-NM Stainless Steel

Suncor Metric Plain Eye Bolt M8 316-NM Stainless Steel

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Metric Plain Eye Bolt is a top-of-the-line choice for industrial applications. Made from 316-NM stainless steel, it features a precise drop forged and precision machined construction, ensuring unparalleled strength and durability. This bolt is ASME B30.26 compliant and rated with a Working Load Limit (WLL) of 800 lb, meeting the highest standards for safety and performance. Each bolt comes with a nut and washer included, with additional stock available for purchase. Trust Suncor's exclusive quality for a perfect fit and lasting security.

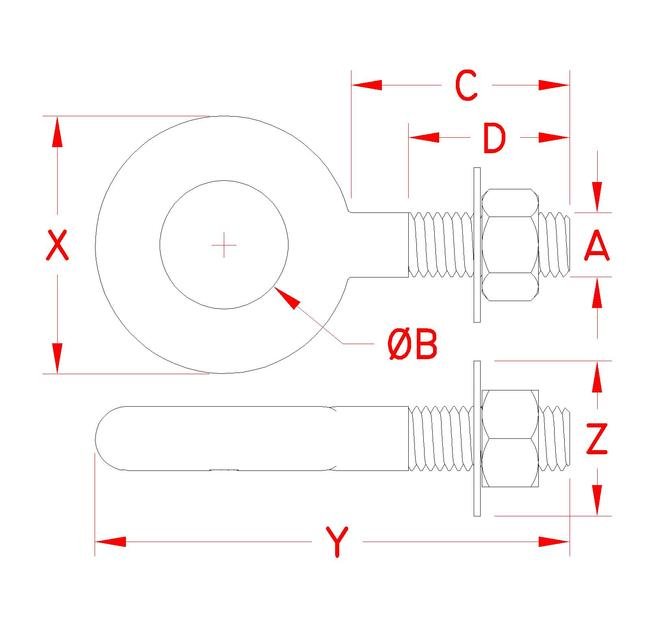

Product Specifications

Specifications Dimension A
M8
Specifications Dimension B
0.63 in
Specifications Dimension C
1.38 in
Specifications Dimension D
0.38 in
Specifications Dimension X
1.18 in
Specifications Dimension Y
2.57 in
Specifications Dimension Z
0.61 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.08 lb
Specifications Working Load Limit Wll
800 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
