Suncor Metric Shoulder Eye Bolt M12 316-NM Stainless Steel

Suncor Metric Shoulder Eye Bolt M12 316-NM Stainless Steel

SKU:STA-d8db9c

Discover Suncor's M12 316-NM Stainless Steel Eye Bolt - ASME B30.26 compliant, with 2,150 lb WLL.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Metric Shoulder Eye Bolt M12 316-NM Stainless Steel

Suncor Metric Shoulder Eye Bolt M12 316-NM Stainless Steel

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Shoulder Eye Bolt M12 316-NM Stainless Steel

Suncor Metric Shoulder Eye Bolt M12 316-NM Stainless Steel

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

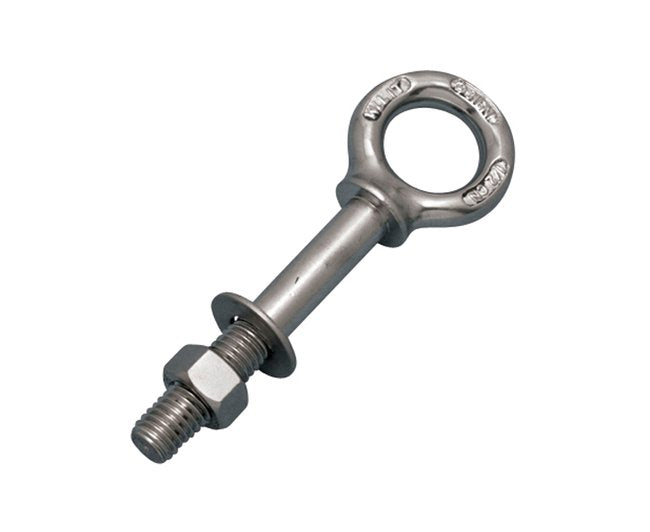

The Suncor Metric Shoulder Eye Bolt in M12 size, 316-NM stainless steel construction, and ASME B30.26 compliance is a robust and precision-engineered solution for heavy-duty lifting applications. Featuring a working load limit of 2,150 lb, this bolt is drop forged and machined for superior strength and perfect fit. Each bolt comes complete with a nut and washer, with additional accessories readily available. Trust Suncor for reliable, load-rated performance that meets the highest industry standards.

Product Specifications

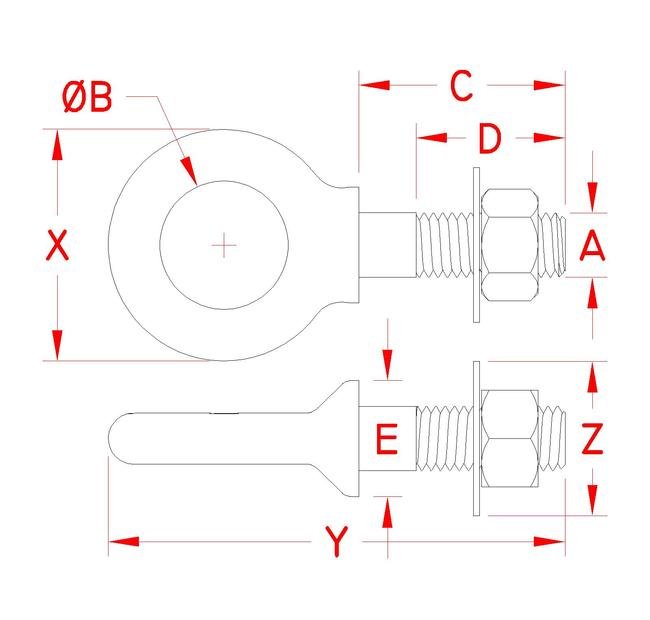

Specifications Dimension A
M12
Specifications Dimension B
1.00 in
Specifications Dimension C
1.50 in
Specifications Dimension D
1.00 in
Specifications Dimension E
0.88 in
Specifications Dimension X
1.80 in
Specifications Dimension Y
3.47 in
Specifications Dimension Z
0.92 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.31 lb
Specifications Working Load Limit Wll
2,150 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
