Suncor Metric Shoulder Eye Bolt M18 316-NM Stainless Steel WLL 5,140 lb ASME B30.26

Name: Suncor Metric Shoulder Eye Bolt M18 316-NM Stainless Steel WLL 5,140 lb ASME B30.26
Brand: Suncor Stainless, Inc.
SKU: STA-da9964
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-da9964

Suncor Metric Shoulder Eye Bolt: M18 316-NM Stainless Steel, WLL 5,140 lb. ASME B30.26 compliant, for reliable heavy-duty applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

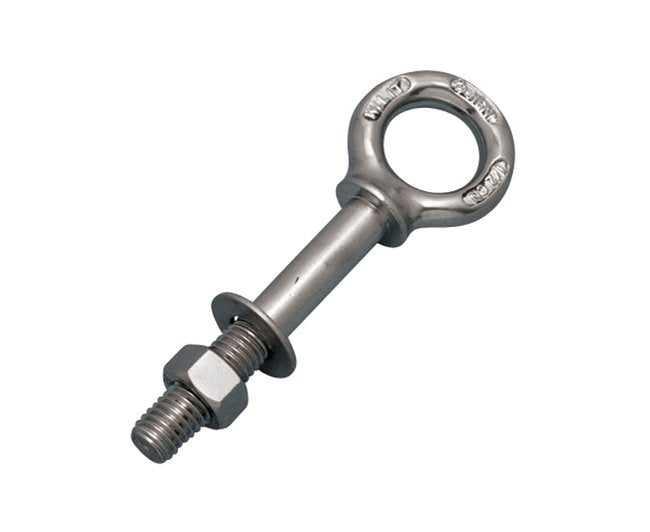

The Suncor Metric Shoulder Eye Bolt in M18 size, forged with 316-NM Stainless Steel, meets ASME B30.26 specifications. With a Working Load Limit of 5,140 lb, this bolt is drop forged and precision machined for reliable performance. Each bolt comes with a nut and washer, ensuring a perfect fit and seating. Ideal for heavy-duty applications requiring durability and strength.

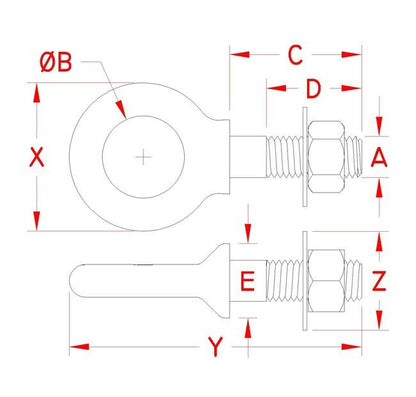

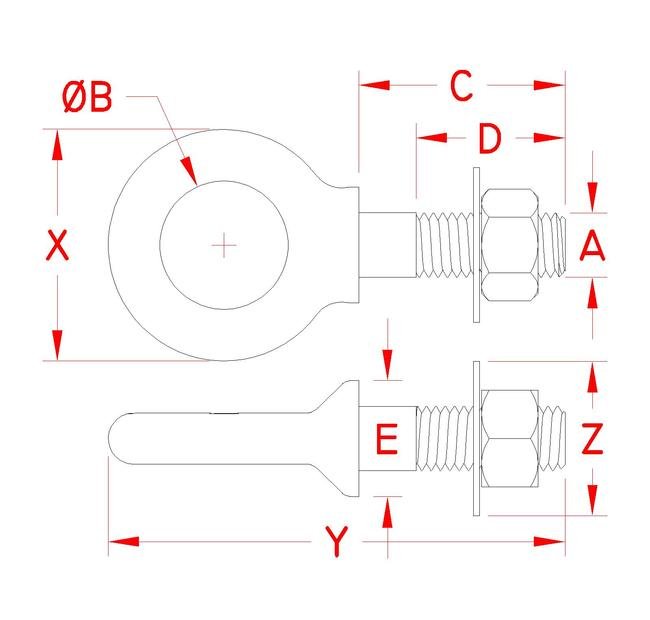

Product Specifications

Specifications Dimension A

M18

Specifications Dimension B

1.50 in

Specifications Dimension C

2.00 in

Specifications Dimension D

1.75 in

Specifications Dimension E

1.31 in

Specifications Dimension X

2.76 in

Specifications Dimension Y

5.10 in

Specifications Dimension Z

1.33 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ASME B30.26

Specifications Suncor Exclusive

Yes

Specifications Weight

1.05 lb

Specifications Working Load Limit Wll

5,140 lb

CAGE

1CXX6

NAICS

332722

PSC

5306

Suncor Metric Shoulder Eye Bolt M18 316-NM Stainless Steel WLL 5,140 lb ASME B30.26
