Suncor Metric Shoulder Eye Bolt M18 x 6.00 in 316-NM Stainless Steel - ASME B30.26 Compliant

Suncor Metric Shoulder Eye Bolt M18 x 6.00 in 316-NM Stainless Steel - ASME B30.26 Compliant

SKU:STA-7cdf85

Premium Suncor Metric Shoulder Eye Bolt: 316-NM Stainless Steel, ASME B30.26 Compliant, WLL 5,140 lb.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Metric Shoulder Eye Bolt M18 x 6.00 in 316-NM Stainless Steel - ASME B30.26 Compliant

Suncor Metric Shoulder Eye Bolt M18 x 6.00 in 316-NM Stainless Steel - ASME B30.26 Compliant

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Shoulder Eye Bolt M18 x 6.00 in 316-NM Stainless Steel - ASME B30.26 Compliant

Suncor Metric Shoulder Eye Bolt M18 x 6.00 in 316-NM Stainless Steel - ASME B30.26 Compliant

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

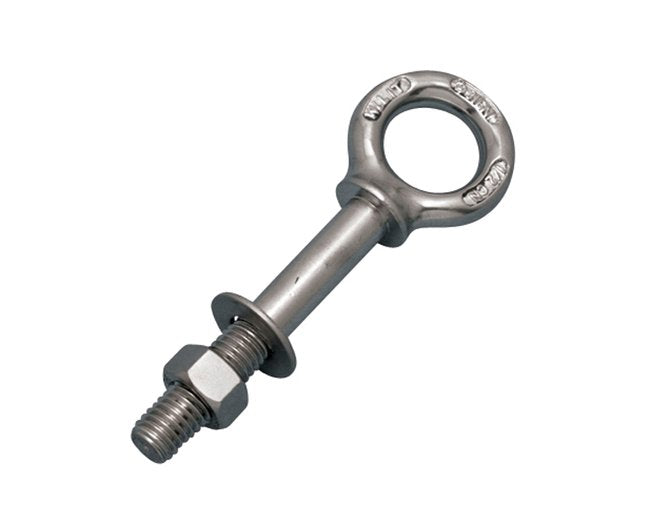

The Suncor Metric Shoulder Eye Bolt is a premium-grade hardware essential for heavy-duty lifting applications. Constructed from high-quality 316-NM stainless steel, this drop forged and precision machined eye bolt ensures exceptional strength and durability. With a generous Working Load Limit (WLL) of 5,140 lb, this ASME B30.26 compliant bolt guarantees reliable performance. Each bolt is meticulously engineered with metric threads, machined shaft, and a shoulder underside for a secure fit. Suncor's exclusive design includes a nut and washer, with additional stock for spares readily available. Trust Suncor for top-notch hardware solutions meeting stringent industry standards.

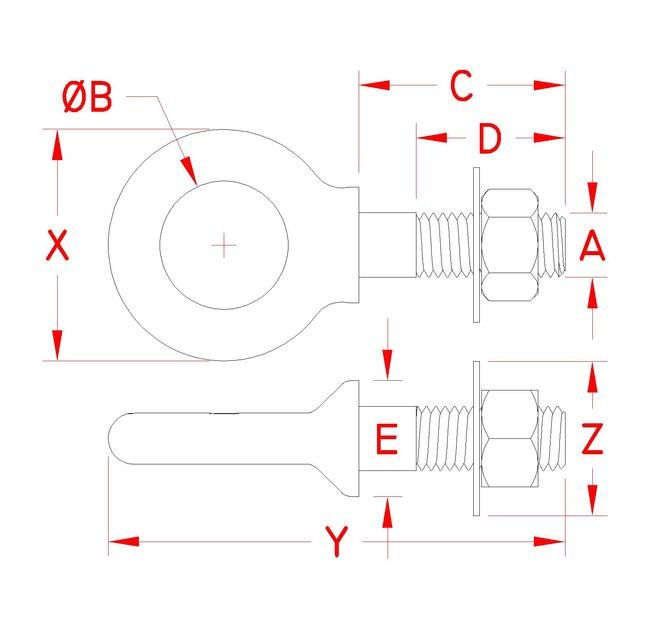

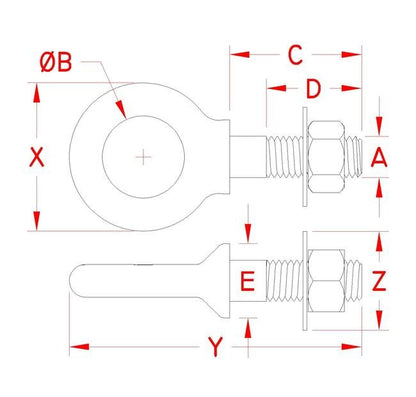

Product Specifications

Specifications Dimension A
M18
Specifications Dimension B
1.50 in
Specifications Dimension C
6.00 in
Specifications Dimension D
3.00 in
Specifications Dimension E
1.31 in
Specifications Dimension X
2.76 in
Specifications Dimension Y
9.05 in
Specifications Dimension Z
1.33 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
1.48 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
