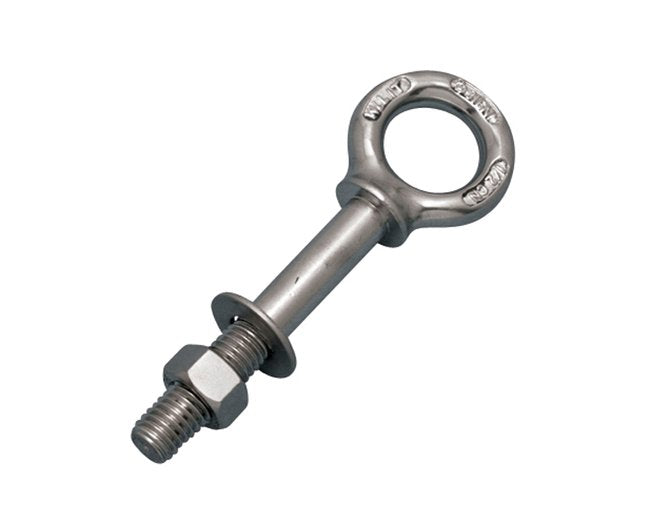

Suncor Metric Shoulder Eye Bolt M20 316-NM Stainless Steel

Suncor Metric Shoulder Eye Bolt M20 316-NM Stainless Steel

SKU:STA-8c78eb

Enhance your rigging setup with the Suncor Metric Shoulder Eye Bolt - ASME B30.26 compliant, ideal for heavy-duty applications

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Metric Shoulder Eye Bolt M20 316-NM Stainless Steel

Suncor Metric Shoulder Eye Bolt M20 316-NM Stainless Steel

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Metric Shoulder Eye Bolt M20 316-NM Stainless Steel

Suncor Metric Shoulder Eye Bolt M20 316-NM Stainless Steel

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your rigging setup with the Suncor Metric Shoulder Eye Bolt. Crafted from 316-NM stainless steel, this eye bolt is tailored for heavy-duty applications. With a Working Load Limit (WLL) of 7,130 lb and precision machined dimensions, it ensures a secure fit and lasting performance. Compliant with ASME B30.26 standards, this drop-forged eye bolt is ideal for industrial, marine, and construction use. Each bolt includes a nut and washer, with additional replacements readily available. Trust Suncor for durability and reliability in every application.

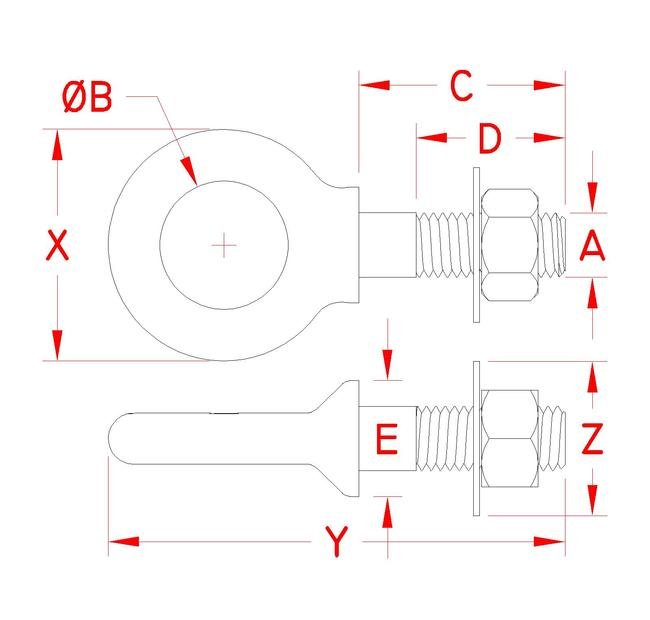

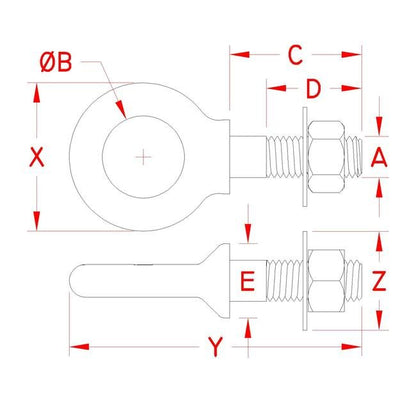

Product Specifications

Specifications Dimension A
M20
Specifications Dimension B
1.75 in
Specifications Dimension C
5.00 in
Specifications Dimension D
2.50 in
Specifications Dimension E
1.75 in
Specifications Dimension X
3.23 in
Specifications Dimension Y
8.65 in
Specifications Dimension Z
1.72 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
2.05 lb
Specifications Working Load Limit Wll
7,130 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
