Suncor Metric Shoulder Eye Bolt M24 - 316-NM Stainless Steel
Suncor Metric Shoulder Eye Bolt M24 - 316-NM Stainless Steel
SKU:STA-b9a360
Suncor Metric Shoulder Eye Bolt in M24 size, 316-NM Stainless Steel. WLL 9,370 lb. ASME B30.26 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor Metric Shoulder Eye Bolt M24 - 316-NM Stainless Steel
$39.99
Quantity: 1
Claim Your Seller Account
Suncor Metric Shoulder Eye Bolt M24 - 316-NM Stainless Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

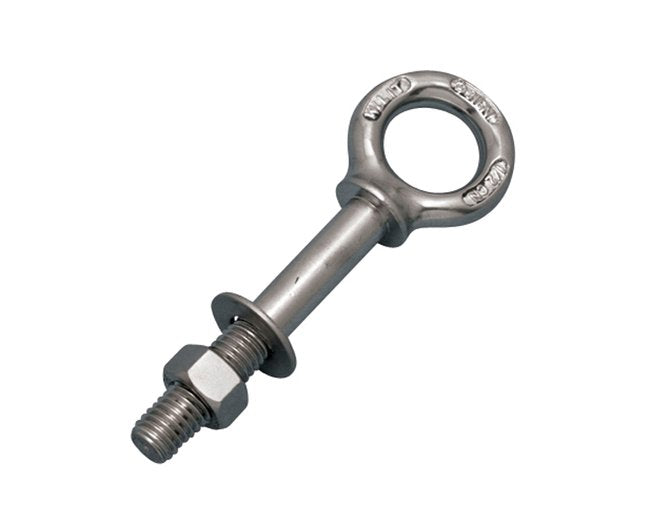

The Suncor Metric Shoulder Eye Bolt in M24 size, forged from 316-NM stainless steel, offers exceptional strength with a Working Load Limit (WLL) of 9,370 lb. Precision machined for a perfect fit, this bolt comes with one nut and washer included. Compliant with ASME B30.26 standards, this bolt is ideal for industrial applications requiring durability and reliability. Upgrade to Suncor for unmatched quality and performance.

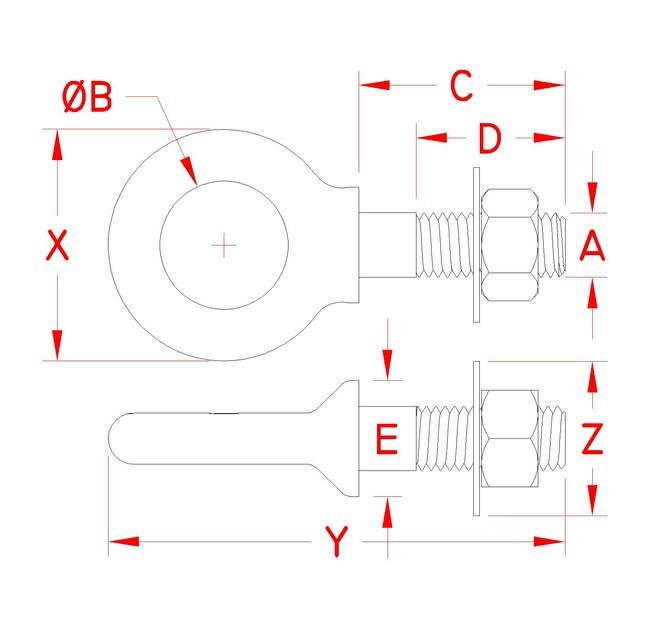

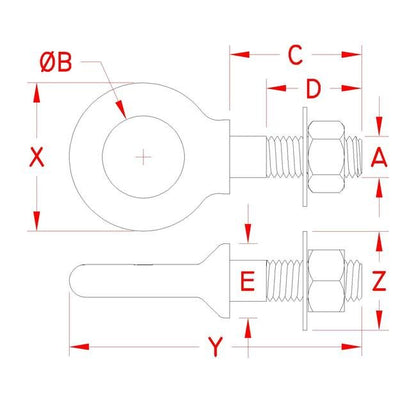

Product Specifications
Specifications Dimension A
M24
Specifications Dimension B
2.00 in
Specifications Dimension C
1.38 in
Specifications Dimension D
1.38 in
Specifications Dimension E
1.83 in
Specifications Dimension X
3.77 in
Specifications Dimension Y
5.35 in
Specifications Dimension Z
1.82 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
2.46 lb
Specifications Working Load Limit Wll
9,370 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
