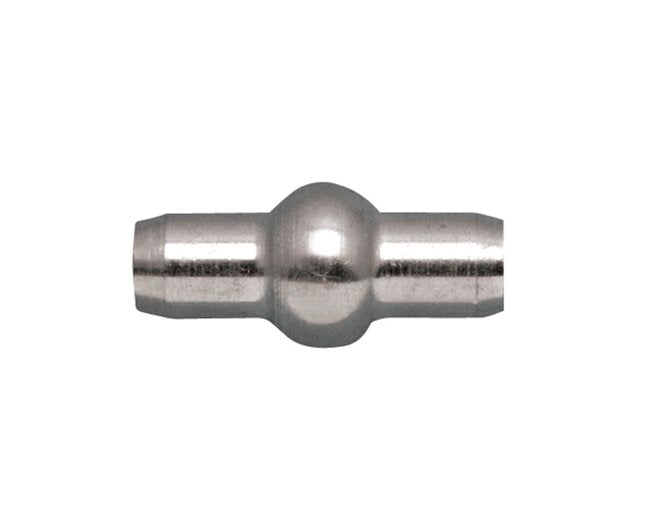

Suncor Mil. Spec Double Shank Ball - Stainless Steel Swage Terminal
Suncor Mil. Spec Double Shank Ball - Stainless Steel Swage Terminal
SKU:MIL-08177d
Reliable stainless steel double shank ball for military applications, meets mil. spec #MS20663 & MIL-DTL-781 standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Suncor Mil. Spec Double Shank Ball - Stainless Steel Swage Terminal
$49.99
Quantity: 1
Claim Your Seller Account
Suncor Mil. Spec Double Shank Ball - Stainless Steel Swage Terminal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your institutional needs with the Suncor Mil. Spec Double Shank Ball. Made from high-quality stainless steel and precision machined, this swage fitting meets mil. spec #MS20663 and MIL-DTL-781 requirements, approved for listing in QPL-781. Available in sizes from 1/16" to 5/16", this product ensures durability and reliability in military applications.
Product Specifications
Specifications After Swage
0.14 in
Specifications Ball After Swage
0.25 in
Specifications Ball Before Swage
0.28 in
Specifications Before Swage
0.16 in

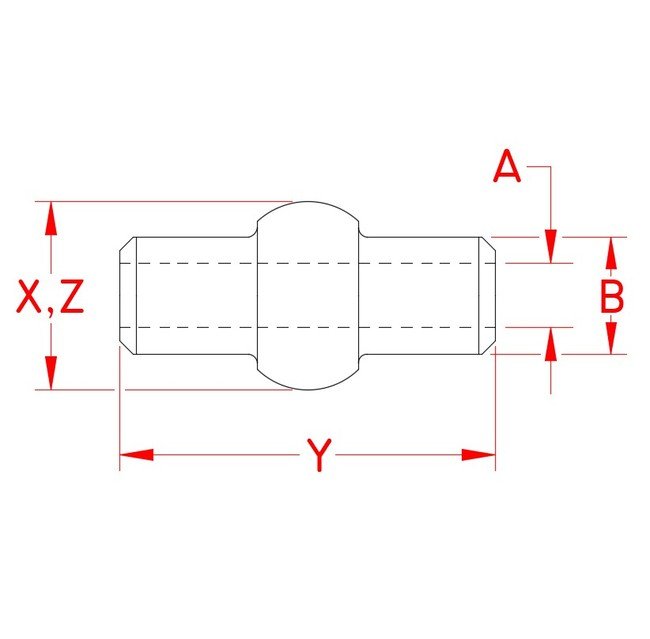

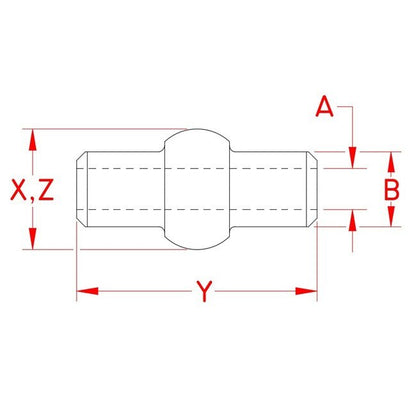

Specifications Dimension A
3/32 in
Specifications Dimension X
0.28 in
Specifications Dimension Y
0.53 in
Specifications Dimension Z
0.28 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight Per 100 Feet
0.20 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
