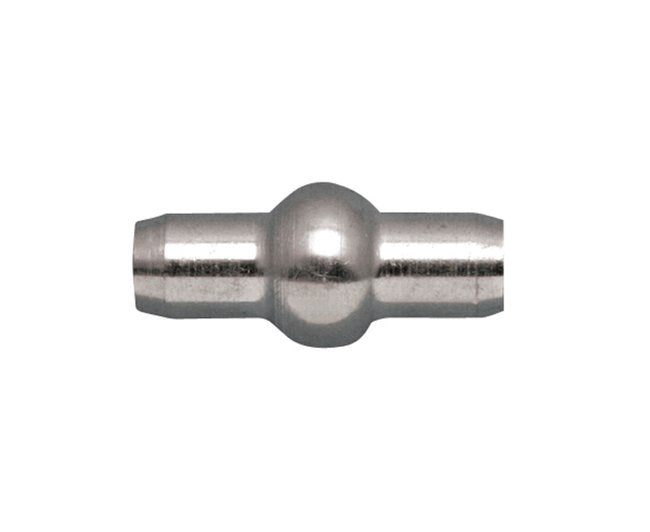

Suncor Mil. Spec Double Shank Ball Stainless Steel Swage Terminals
Suncor Mil. Spec Double Shank Ball Stainless Steel Swage Terminals
SKU:MIL-a0ffb4
Precision machined stainless steel double shank ball meeting MIL-DTL-781 for industrial & government use. Sizes from 1/16" to 5/16".
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Suncor Mil. Spec Double Shank Ball Stainless Steel Swage Terminals
$12.99
Quantity: 1
Claim Your Seller Account
Suncor Mil. Spec Double Shank Ball Stainless Steel Swage Terminals
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Mil. Spec Double Shank Ball Stainless Steel Swage Terminals are precision machined to meet military specification #MS20663. Compliant with MIL-DTL-781, these double shank balls undergo rigorous quality testing and approval for listing in QPL-781. Available in various sizes from 1/16" to 5/16", these swage fittings ensure reliability, durability, and optimal performance for industrial and government applications.
Product Specifications
Specifications After Swage
0.35 in
Specifications Ball After Swage
0.57 in
Specifications Ball Before Swage
0.62 in
Specifications Before Swage
0.40 in

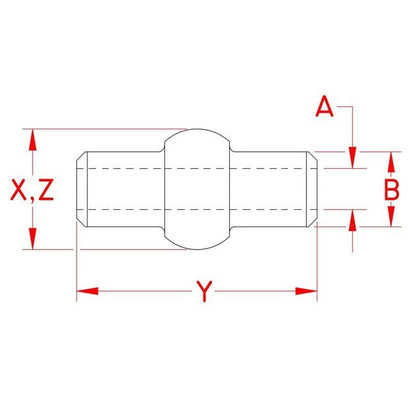

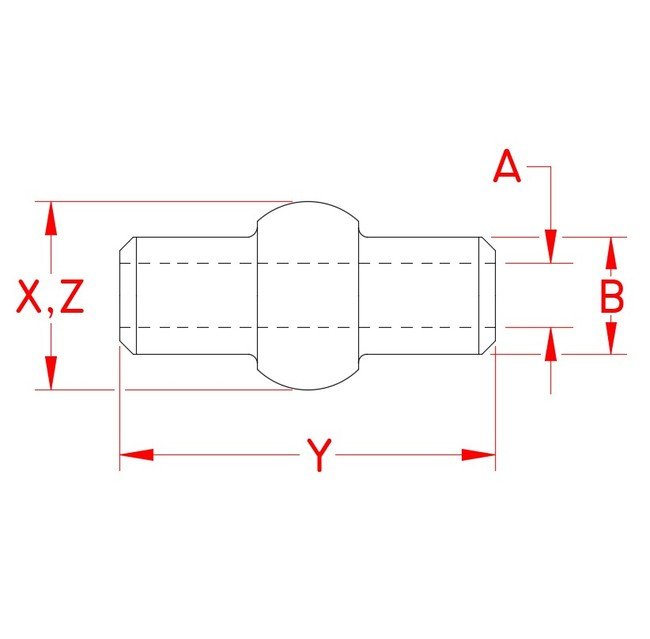

Specifications Dimension A
1/4 in
Specifications Dimension X
0.62 in
Specifications Dimension Y
1.34 in
Specifications Dimension Z
0.62 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.04 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
