Suncor Mil. Spec Single Shank Ball - Stainless Steel Swage Fittings
Suncor Mil. Spec Single Shank Ball - Stainless Steel Swage Fittings
SKU:MIL-36da4e
Top-tier stainless steel swage fitting meeting military specs for precision and durability.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

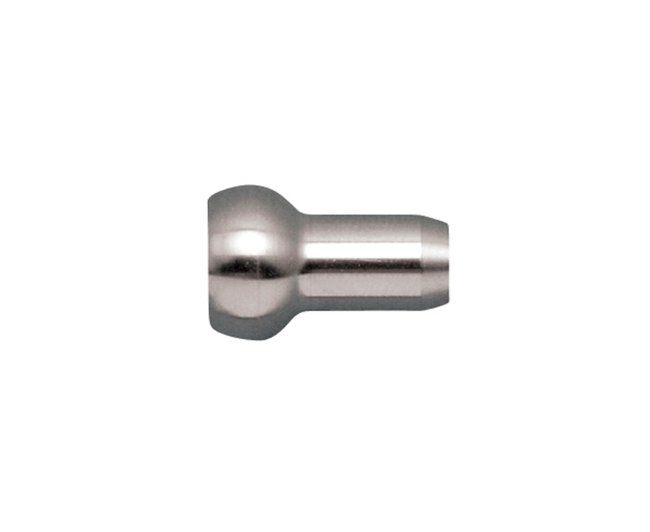

The Suncor Mil. Spec Single Shank Ball is a top-tier stainless steel swage fitting designed to meet the demanding requirements of military specifications. Compliant with mil. spec #MS20664C, MIL-DTL-781, and approved for listing in QPL-781, this precision machined fitting guarantees exceptional performance and durability in a range of sizes from 1/16" to 5/16". Crafted in the USA from high-quality stainless steel, it undergoes rigorous quality testing to ensure reliability in critical applications.
Product Specifications
Specifications After Swage
0.41 in
Specifications Ball After Swage
0.69 in
Specifications Ball Before Swage
0.77 in
Specifications Before Swage
0.48 in

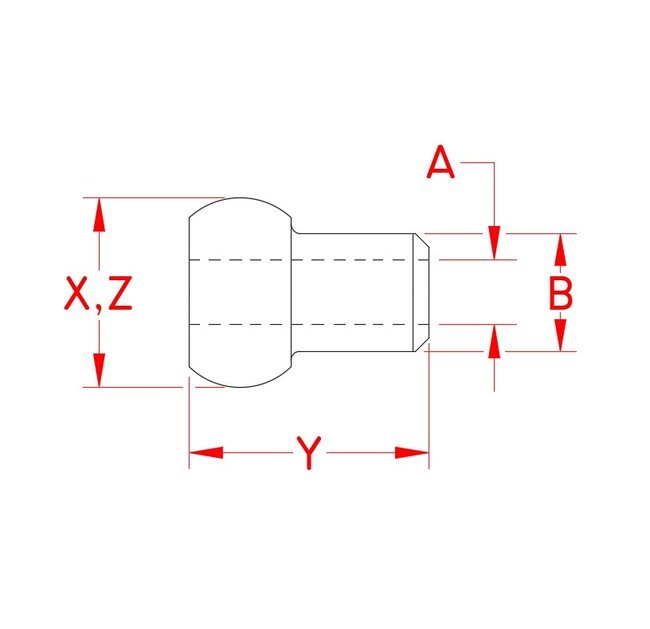

Specifications Dimension A
5/16 in
Specifications Dimension X
0.77 in
Specifications Dimension Y
1.19 in
Specifications Dimension Z
0.77 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.05 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
