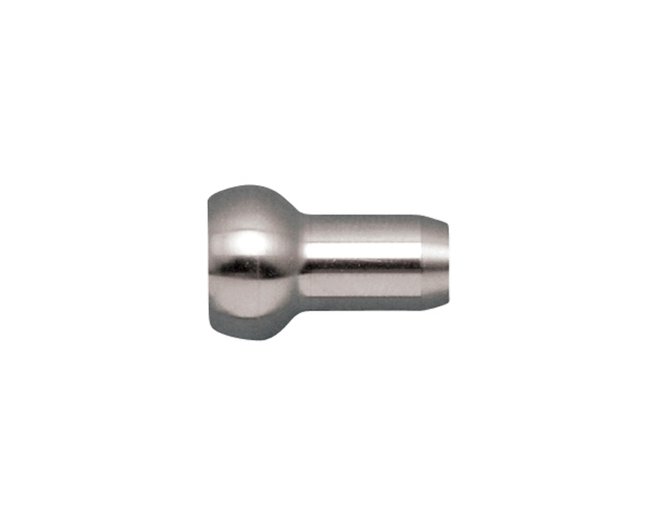

Suncor Mil. Spec Single Shank Ball - Stainless Steel Swage Terminal
Suncor Mil. Spec Single Shank Ball - Stainless Steel Swage Terminal
SKU:MIL-918987
Meet MIL-DTL-781 standards with our precision-engineered Suncor Mil. Spec Single Shank Ball stainless steel swage terminal. Sizes from 1/16" to 5/16". Made in the USA.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Ensure precision and quality with our Suncor Mil. Spec Single Shank Ball, meeting MIL-DTL-781 standards for military applications. Made in the USA from stainless steel, these swage fittings are engineered for reliability and durability. Available in sizes ranging from 1/16" to 5/16", these precision machined terminals undergo rigorous testing to guarantee performance and compliance with government procurement regulations.
Product Specifications
Specifications After Swage
0.11 in
Specifications Ball After Swage
0.19 in
Specifications Ball Before Swage
0.21 in
Specifications Before Swage
0.13 in

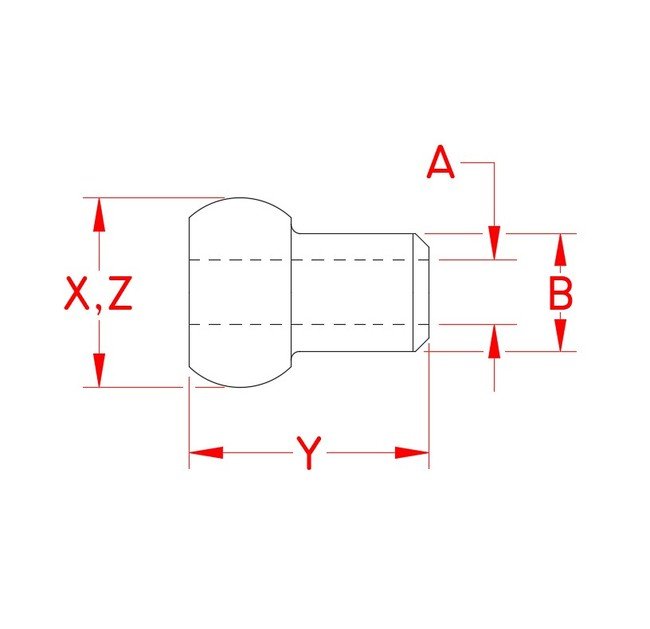

Specifications Dimension A
1/16 in
Specifications Dimension X
0.21 in
Specifications Dimension Y
0.27 in
Specifications Dimension Z
0.21 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight Per 100 Feet
0.01 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
