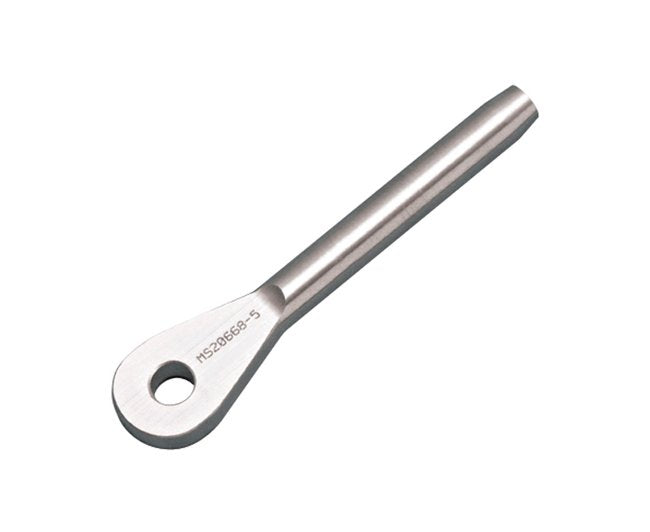

Suncor Mil-Spec Swage Eye Terminal
Suncor Mil-Spec Swage Eye Terminal
SKU:MIL-dc13a4
Meet mil. spec #MS20668 with the precision-crafted Suncor Mil-Spec Swage Eye Terminal. Available in multiple sizes and made in the USA.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Mil-Spec Swage Eye Terminal
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Mil-Spec Swage Eye Terminal
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Mil-Spec Swage Eye Terminal is meticulously crafted to meet mil. spec #MS20668 and MIL-DTL-781 standards, ensuring top-notch quality and reliability. Precision machined from stainless steel, this swage eye comes in various sizes, from 1/16" to 3/8", with dimensions meeting rigorous military specifications. Made in the USA, it offers exceptional durability, with before and after swage dimensions optimized for secure installations.
Product Specifications
Specifications After Swage
0.63 in
Specifications Before Swage
0.70 in

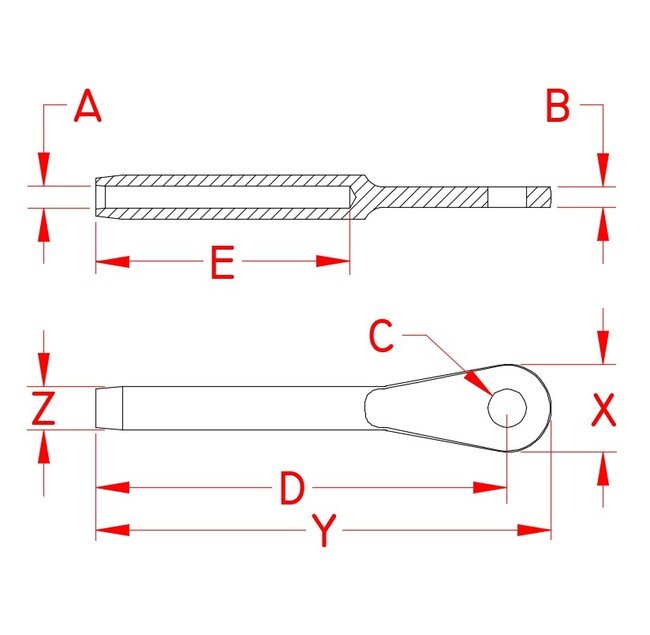

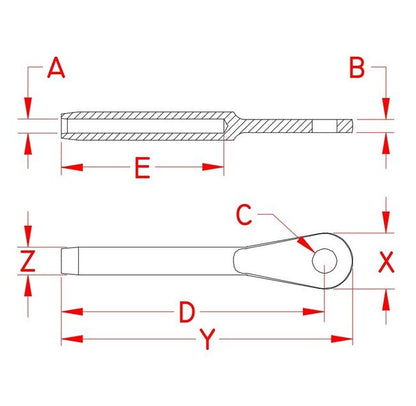

Specifications Dimension A
3/8 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.50 in
Specifications Dimension D
5.56 in
Specifications Dimension X
1.50 in
Specifications Dimension Y
6.38 in
Specifications Dimension Z
0.70 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.55 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
