Suncor Mil. Spec Swage Eye Terminal, Stainless Steel
Suncor Mil. Spec Swage Eye Terminal, Stainless Steel
SKU:MIL-763839
Precision machined stainless steel Mil. Spec Swage Eye Terminal meeting MIL-DTL-781 & mil. spec #MS20668 standards. Various sizes available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Mil. Spec Swage Eye Terminal, Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Mil. Spec Swage Eye Terminal, Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

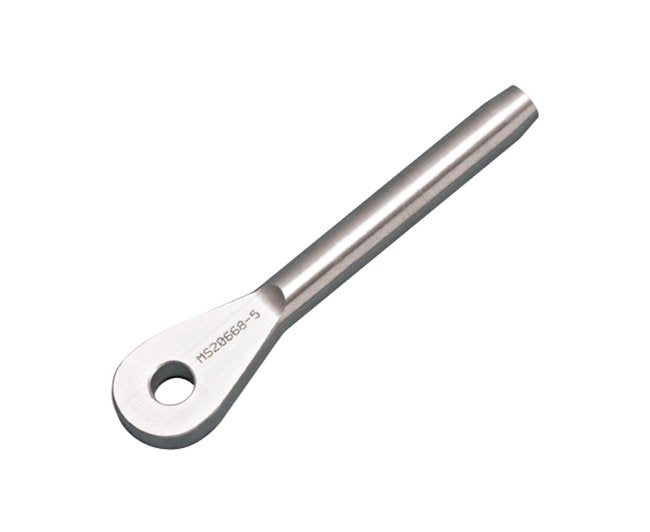

The Suncor Mil. Spec Swage Eye Terminal meets strict military specifications, including MIL-DTL-781 and mil. spec #MS20668. Precision machined from stainless steel in the USA, these terminals ensure exceptional quality and reliability. Available in various sizes from 1/16" to 3/8", they offer precise dimensions before and after swaging for secure installations.

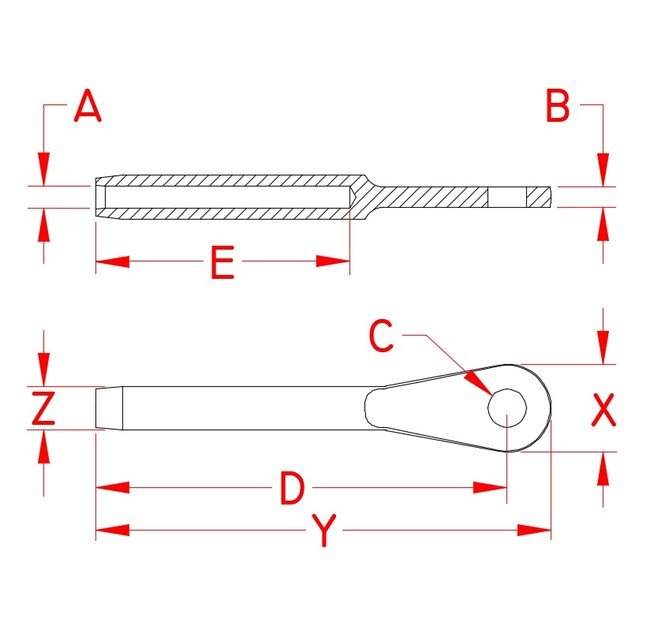

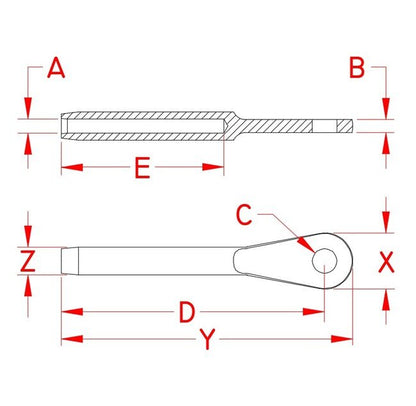

Product Specifications
Specifications After Swage
0.56 in
Specifications Before Swage
0.64 in
Specifications Dimension A
5/16 in
Specifications Dimension B
0.34 in
Specifications Dimension C
0.44 in
Specifications Dimension D
4.55 in
Specifications Dimension X
1.22 in
Specifications Dimension Y
5.22 in
Specifications Dimension Z
0.64 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.37 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
