Suncor Mil-Spec UNF Thread Right Hand Swage Stud
Suncor Mil-Spec UNF Thread Right Hand Swage Stud
SKU:MIL-a4f826
Precision machined stainless steel swage stud meeting MIL-DTL-781 & #MS21259. Available in various sizes.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Mil-Spec UNF Thread Right Hand Swage Stud
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Mil-Spec UNF Thread Right Hand Swage Stud
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

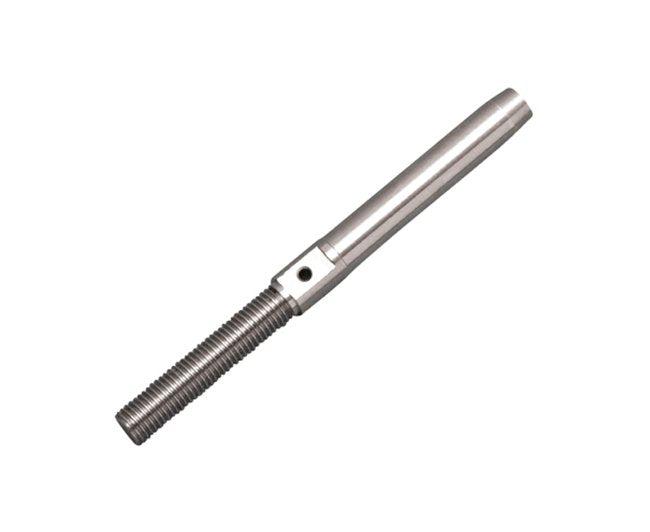

The Suncor Mil-Spec UNF Thread Right Hand Swage Stud is a precision machined stainless steel terminal that meets military specification #MS21259 and MIL-DTL-781 requirements. Approved for QPL-781, this swage stud is available in various sizes from 1/16" to 3/8". Designed for durability and reliability, it offers exceptional dimensional accuracy and strength, making it ideal for demanding applications in military and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

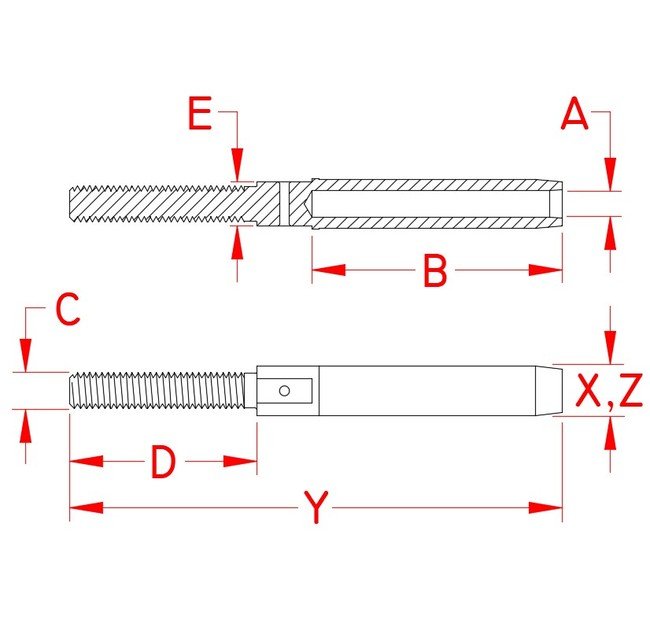

Specifications Dimension A
5/16 in
Specifications Dimension B
3.01 in
Specifications Dimension C
0.50 in
Specifications Dimension D
2.00 in
Specifications Dimension E
0.63 in
Specifications Dimension X
0.64 in
Specifications Dimension Y
5.84 in
Specifications Dimension Z
0.64 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.36 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
