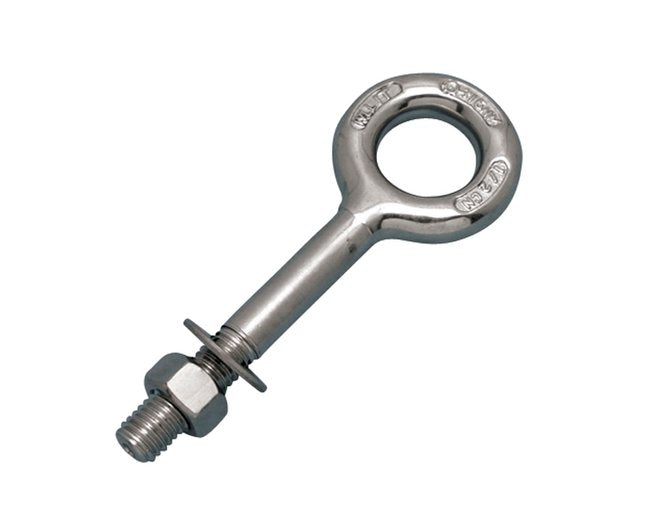

Suncor Plain Eye Bolt 316-NM Stainless Steel UNC Thread
Suncor Plain Eye Bolt 316-NM Stainless Steel UNC Thread
SKU:STA-1718d1
Suncor Plain Eye Bolt: Grade 316-NM Stainless Steel, UNC Threaded, ASME B30.26 Compliant for Marine & Industrial Use
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Suncor Plain Eye Bolt 316-NM Stainless Steel UNC Thread
$29.99
Quantity: 1
Claim Your Seller Account
Suncor Plain Eye Bolt 316-NM Stainless Steel UNC Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor Plain Eye Bolt is a versatile choice for marine and industrial projects. Made from grade 316-NM stainless steel, this UNC threaded bolt ensures corrosion resistance and durability. With a Working Load Limit of 5,140 lb, precision machined fabrication, and ASME B30.26 compliance, it meets stringent quality standards for reliability and safety.
Ready to Grow Without Cash Flow Constraints?

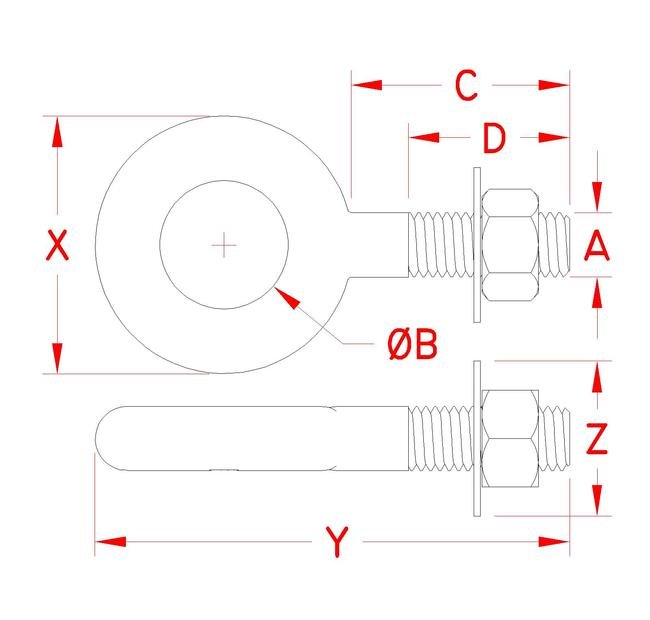

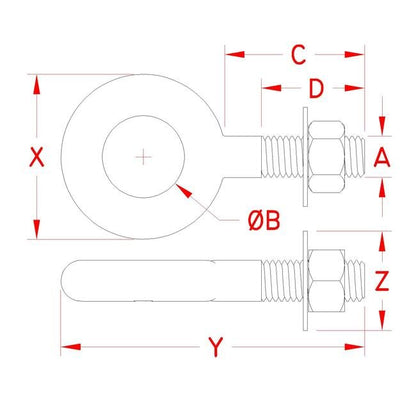

Product Specifications
Specifications Dimension A
3/4 in
Specifications Dimension B
1.50 in
Specifications Dimension C
6.00 in
Specifications Dimension D
3.00 in
Specifications Dimension X
2.90 in
Specifications Dimension Y
8.90 in
Specifications Dimension Z
1.44 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
1.6 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
