Suncor Plain Ring Bolt 316 Stainless Steel UNC Thread
Suncor Plain Ring Bolt 316 Stainless Steel UNC Thread
SKU:STA-bf5e69
High-performance Suncor Plain Ring Bolt in 316 Stainless Steel for marine and industrial use. UNC thread with nut and washer included.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

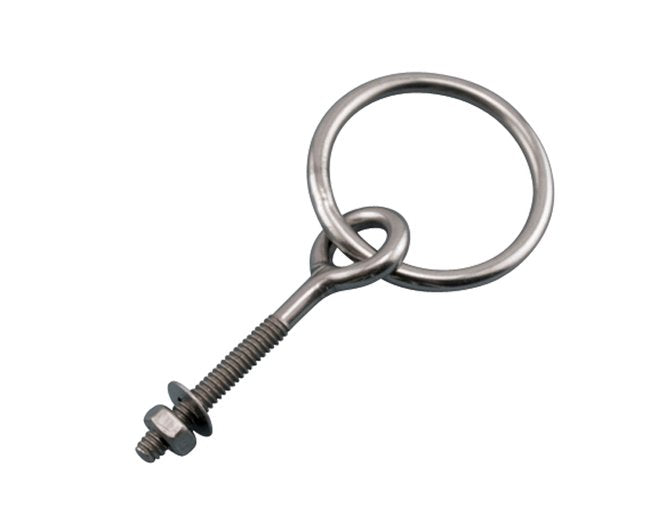

The Suncor Plain Ring Bolt is a reliable choice for marine and industrial applications. Made from grade 316 stainless steel, it offers superior corrosion resistance and durability. This UNC threaded bolt comes with one nut and one washer, available in various sizes to suit different projects. With a Working Load Limit (WLL) of 400 lb, this bolt meets the highest standards for safety and performance, making it ideal for a wide range of applications.

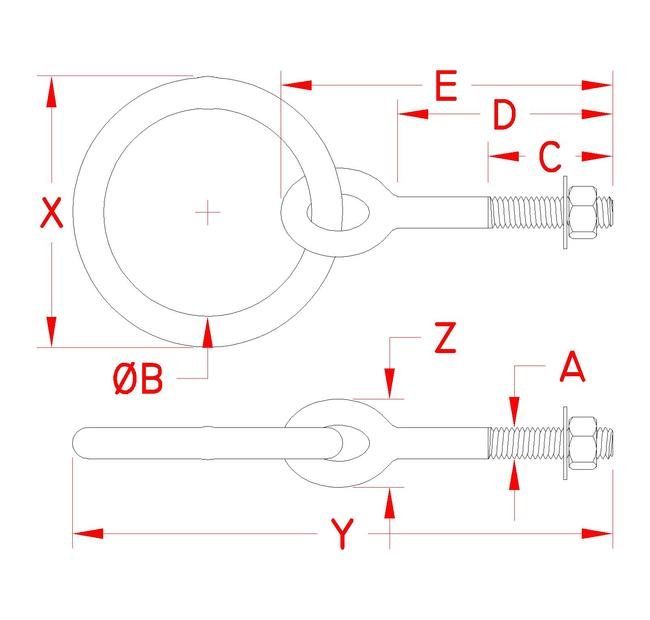

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.50 in
Specifications Dimension D
2.25 in
Specifications Dimension E
3.50 in
Specifications Dimension X
2.63 in
Specifications Dimension Y
5.58 in
Specifications Dimension Z
0.63 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.25 lb
Specifications Working Load Limit Wll
400 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
