Suncor Round Pin Anchor Shackle - 316 Stainless Steel

Name: Suncor Round Pin Anchor Shackle - 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-72fa27
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-72fa27

Discover strength and reliability with our Suncor Round Pin Anchor Shackle in grade 316 stainless steel. Ideal for marine use.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

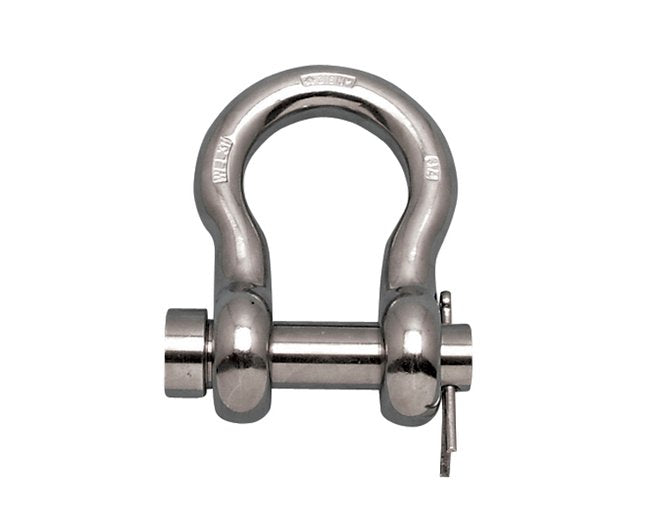

Enhance your marine operations with the Suncor Round Pin Anchor Shackle. Crafted from grade 316-NM stainless steel, this shackle boasts superior strength and corrosion resistance. Designed with an oversize round pin, it securely connects anchors to chains or swivels. With a hefty Working Load Limit of 8,000 lb, this drop-forged shackle is ideal for salt water applications. Compliant with Fed Spec RR-C-271, Type IVA, Class 1 standards.

Product Specifications

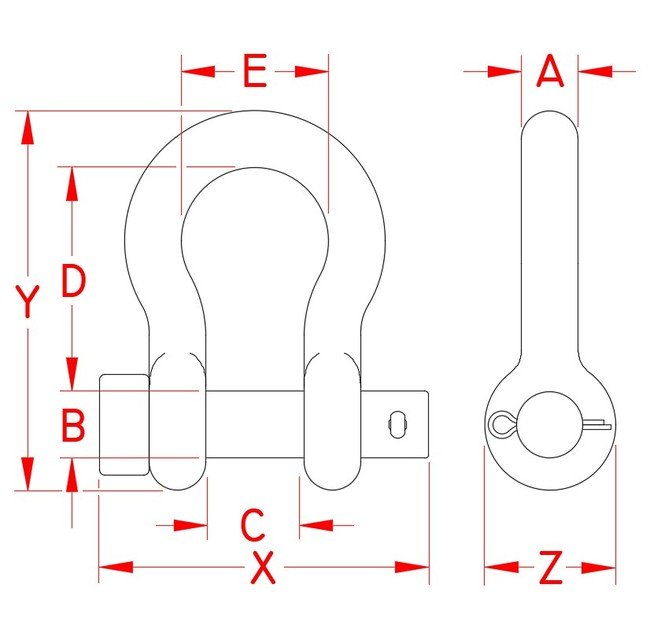

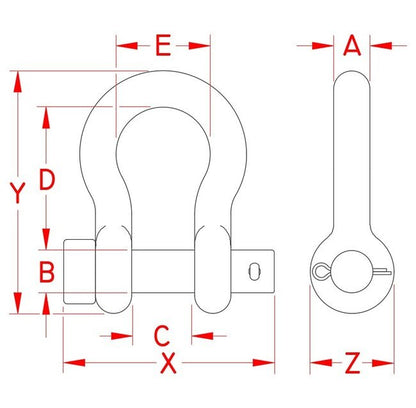

Specifications Dimension A

7/8 in

Specifications Dimension B

1.00 in

Specifications Dimension C

1.48 in

Specifications Dimension D

3.30 in

Specifications Dimension E

2.20 in

Specifications Dimension X

4.32 in

Specifications Dimension Y

5.62 in

Specifications Dimension Z

1.92 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

3.26 lb

Specifications Working Load Limit Wll

8,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor Round Pin Anchor Shackle - 316 Stainless Steel
