Suncor Round Pin Anchor Shackle - 316 Stainless Steel, 5/8 in, WLL 4,000 lb

Suncor Round Pin Anchor Shackle - 316 Stainless Steel, 5/8 in, WLL 4,000 lb

SKU:STA-436546

Heavy-duty Suncor Round Pin Anchor Shackle in 316 stainless steel, ideal for marine and industrial applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Round Pin Anchor Shackle - 316 Stainless Steel, 5/8 in, WLL 4,000 lb

Suncor Round Pin Anchor Shackle - 316 Stainless Steel, 5/8 in, WLL 4,000 lb

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Round Pin Anchor Shackle - 316 Stainless Steel, 5/8 in, WLL 4,000 lb

Suncor Round Pin Anchor Shackle - 316 Stainless Steel, 5/8 in, WLL 4,000 lb

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

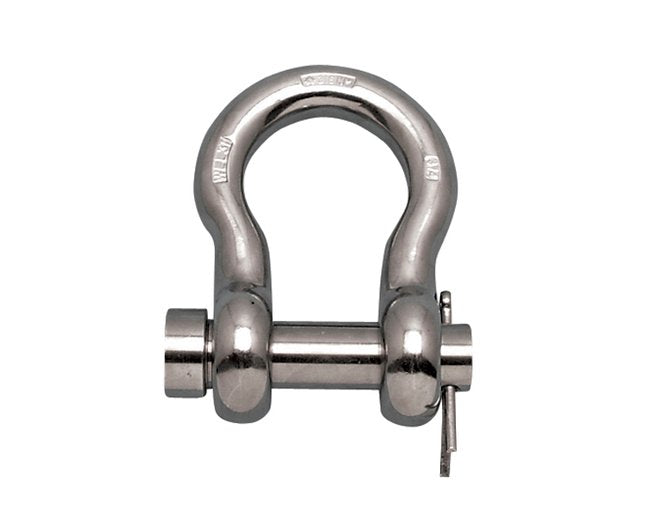

The Suncor Round Pin Anchor Shackle is a heavy-duty, corrosion-resistant shackle constructed from 316-NM stainless steel, perfect for saltwater environments. Featuring an oversize round pin for secure connections, this shackle is specifically designed for anchoring applications. With a working load limit of 4,000 lb, this Suncor shackle is drop-forged to ensure durability and reliability in demanding conditions. Certified to Fed Spec RR-C-271, Type IVA, Class 1 standards, this shackle meets stringent industry requirements, making it ideal for marine, military, and industrial use.

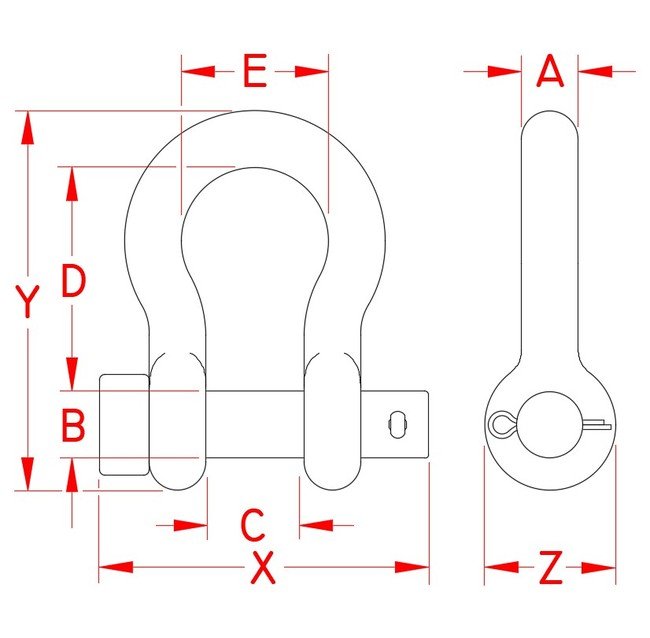

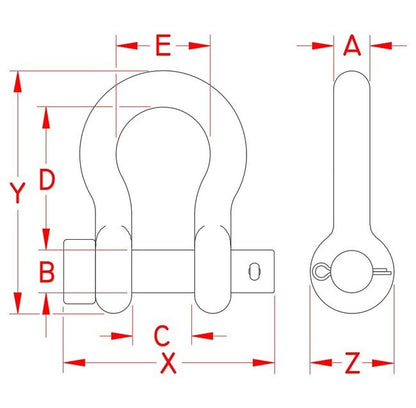

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.02 in
Specifications Dimension D
2.41 in
Specifications Dimension E
1.60 in
Specifications Dimension X
3.36 in
Specifications Dimension Y
4.17 in
Specifications Dimension Z
1.47 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
1.35 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
