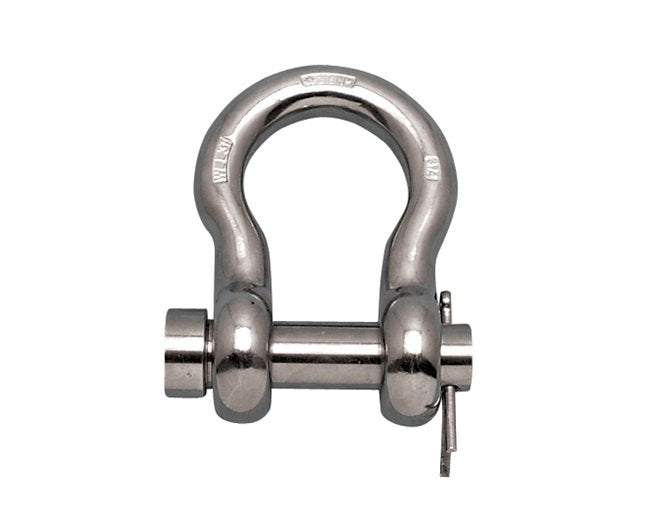

Suncor Round Pin Anchor Shackle - Stainless Steel 316, 1/2 in
Suncor Round Pin Anchor Shackle - Stainless Steel 316, 1/2 in
SKU:STA-ea7a73
Premium Suncor Round Pin Anchor Shackle for maritime applications, stainless steel 316 construction, 1/2 in, 3000 lb WLL
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Enhance your maritime operations with the Suncor Round Pin Anchor Shackle. Crafted from premium grade 316 stainless steel, this shackle boasts an oversized round pin for secure connections. Ideal for saltwater use, it efficiently links anchors to chains or swivels. With a working load limit of 3000 lb, it meets I/W/A Fed Spec RR-C-271, Type IVA, Class 1 standards. Trust Suncor for top-quality marine hardware that ensures safety and reliability in demanding environments.

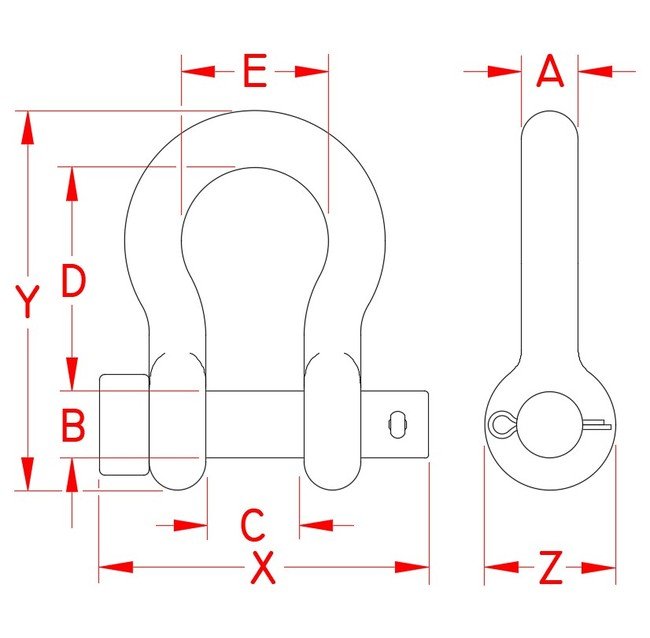

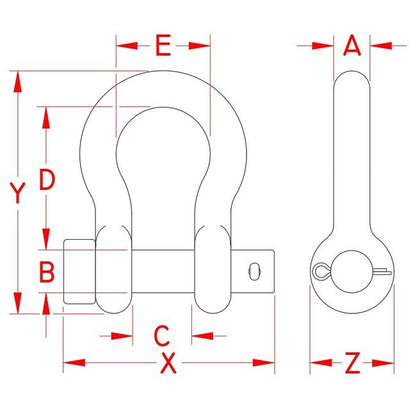

Product Specifications
Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.82 in
Specifications Dimension D
1.83 in
Specifications Dimension E
1.20 in
Specifications Dimension X
2.64 in
Specifications Dimension Y
3.20 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.68 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
