Suncor Round Pin Anchor Shackle - Stainless Steel Grade 316 - 10,000 lb WLL

Suncor Round Pin Anchor Shackle - Stainless Steel Grade 316 - 10,000 lb WLL

SKU:STA-c91a6a

High-performance Suncor Round Pin Anchor Shackle for marine use, crafted from grade 316 stainless steel with 10,000 lb WLL. Compliant with Fed Spec RR-C-271.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor Round Pin Anchor Shackle - Stainless Steel Grade 316 - 10,000 lb WLL

Suncor Round Pin Anchor Shackle - Stainless Steel Grade 316 - 10,000 lb WLL

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Round Pin Anchor Shackle - Stainless Steel Grade 316 - 10,000 lb WLL

Suncor Round Pin Anchor Shackle - Stainless Steel Grade 316 - 10,000 lb WLL

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

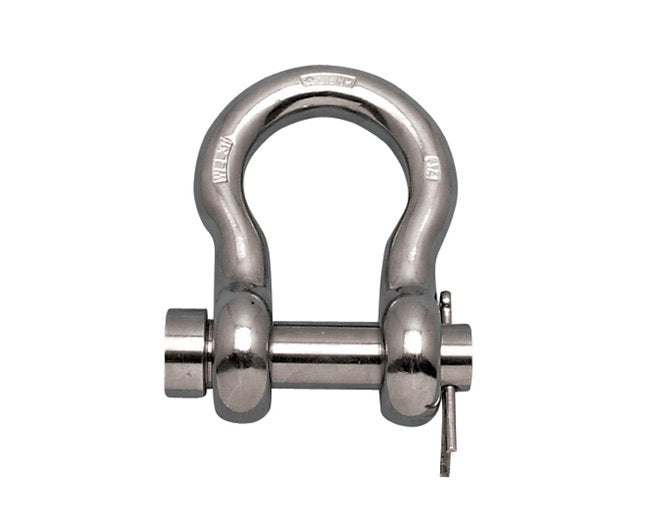

The Suncor Round Pin Anchor Shackle, constructed from premium grade 316-NM stainless steel, is designed for heavy-duty maritime applications. Featuring an oversized round pin and a robust drop-forged fabrication, this shackle ensures secure connections, making it perfect for anchoring systems in saltwater environments. Compliant with Fed Spec RR-C-271, MIL-DTL-32655, and Type IVA standards, this Suncor-exclusive shackle offers unrivaled strength and durability for marine operations.

Product Specifications

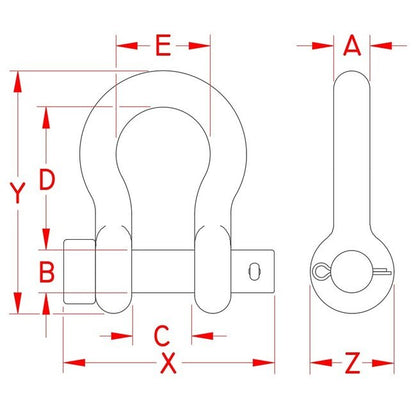

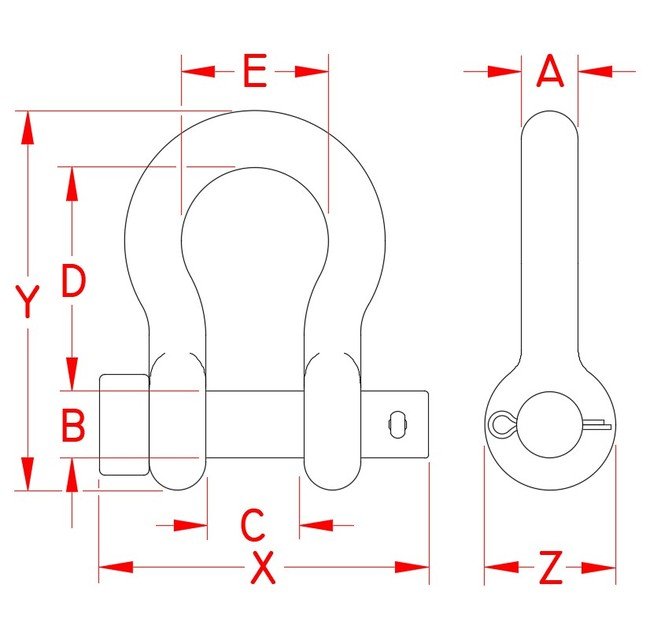

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.70 in
Specifications Dimension D
3.80 in
Specifications Dimension E
2.60 in
Specifications Dimension X
5.00 in
Specifications Dimension Y
6.45 in
Specifications Dimension Z
2.22 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
4.83 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
