Suncor Round Pin Chain Shackle - 316 Stainless Steel
Suncor Round Pin Chain Shackle - 316 Stainless Steel
SKU:STA-fce526
Durable Suncor Round Pin Chain Shackle in 316 Stainless Steel, compliant with top industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

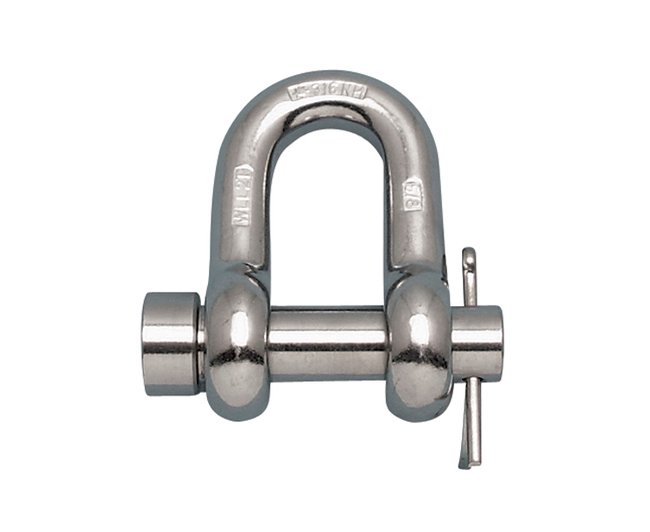

The Suncor Round Pin Chain Shackle is a premium-grade industrial and marine essential. Crafted from top-tier 316-NM stainless steel, this shackle boasts exceptional corrosion resistance. Featuring an oversized round pin for enhanced safety and reliability, it is designed I/A/W Fed Spec RR-C-271, Type IVB, Class 1 standards. With a working load limit of 3000 lb, this drop-forged shackle is ideal for heavy-duty applications, ensuring durability and security in diverse environments.
Product Specifications

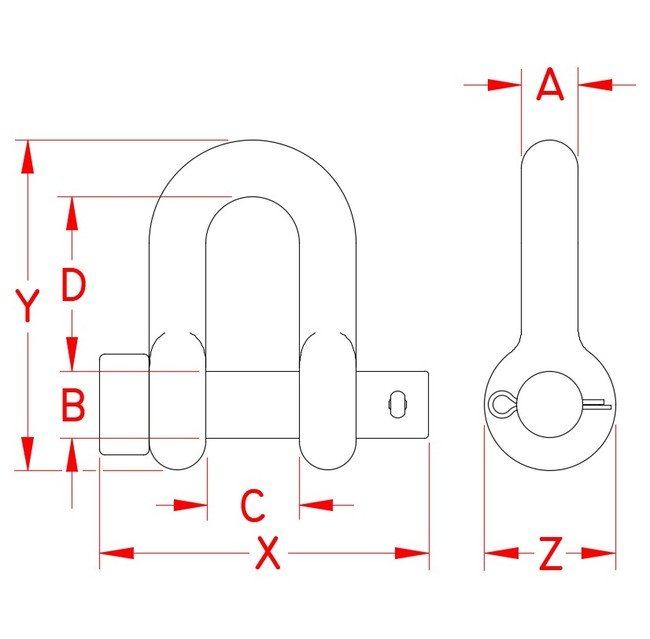

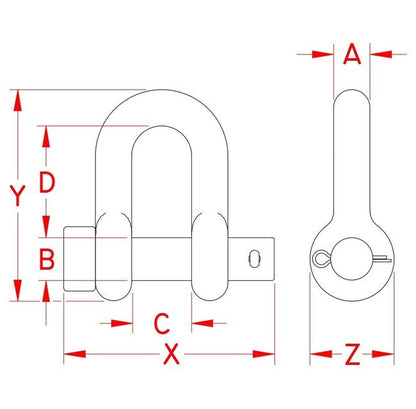

Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.79 in
Specifications Dimension D
1.58 in
Specifications Dimension X
2.64 in
Specifications Dimension Y
2.92 in
Specifications Dimension Z
1.18 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.64 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
