Suncor Round Pin Chain Shackle - 316 Stainless Steel

Name: Suncor Round Pin Chain Shackle - 316 Stainless Steel
Brand: Suncor Stainless, Inc.
SKU: STA-afa2d1
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-afa2d1

Premium Suncor Round Pin Chain Shackle - 316 Stainless Steel, Corrosion-Resistant, WLL 2000 lb, Ideal for Industrial & Marine Use

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

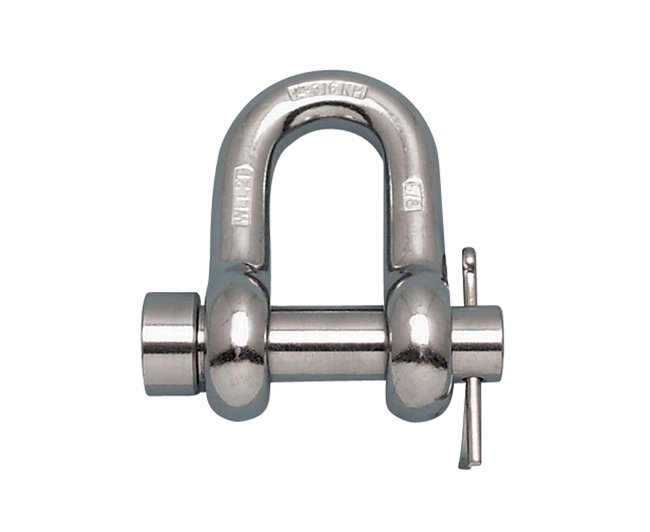

The Suncor Round Pin Chain Shackle is a premium industrial and marine-grade shackle crafted from durable 316-NM stainless steel, ensuring exceptional corrosion resistance and long-lasting performance. Featuring a robust oversize round pin design and precise drop-forged construction, this shackle offers a reliable Working Load Limit (WLL) of 2000 lb, making it ideal for heavy-duty applications. Compliant with Class 1, Fed Spec RR-C-271, MIL-DTL-32655, and Type IVB specifications, this Suncor shackle is a top choice for institutions requiring superior quality and reliability.

Product Specifications

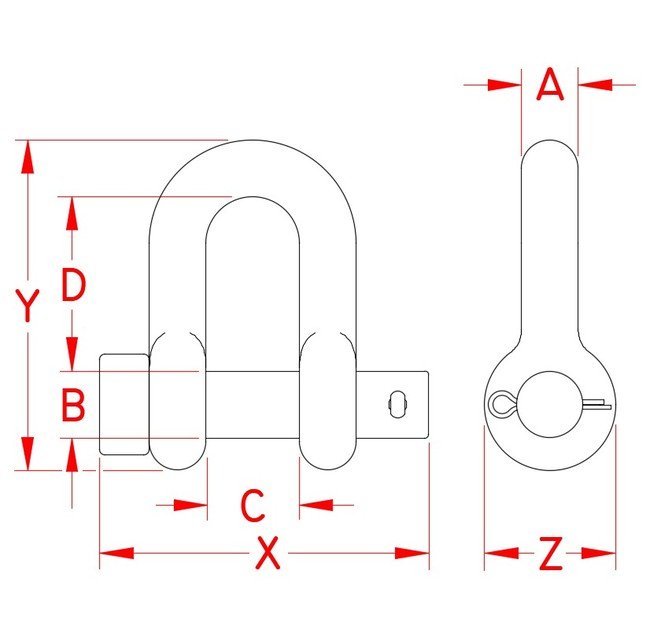

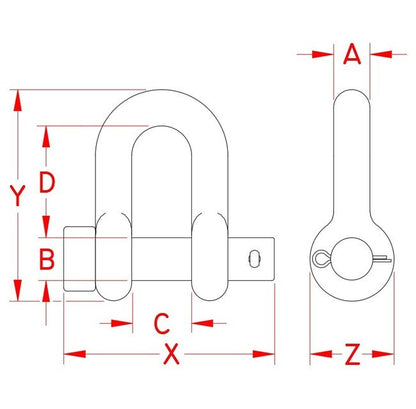

Specifications Dimension A

7/16 in

Specifications Dimension B

0.50 in

Specifications Dimension C

0.75 in

Specifications Dimension D

1.43 in

Specifications Dimension X

2.39 in

Specifications Dimension Y

2.60 in

Specifications Dimension Z

1.01 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB

Specifications Suncor Exclusive

Yes

Specifications Weight

0.42 lb

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Suncor Round Pin Chain Shackle - 316 Stainless Steel
