Suncor Round Pin Chain Shackle - 316 Stainless Steel, 5/8 in

Suncor Round Pin Chain Shackle - 316 Stainless Steel, 5/8 in

SKU:STA-6518b9

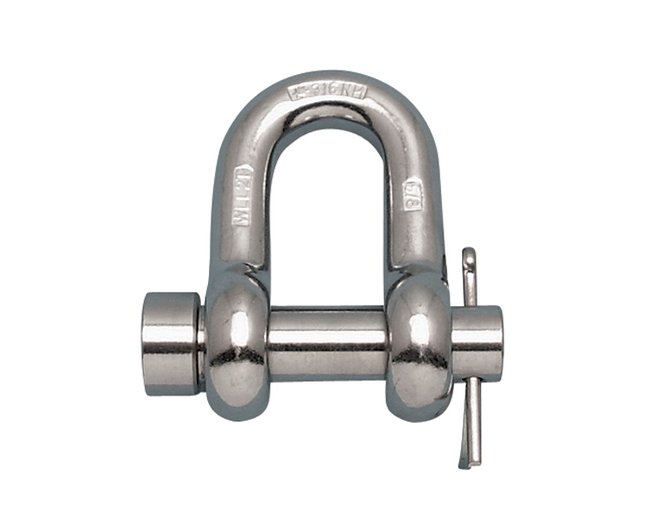

High-strength Suncor Round Pin Chain Shackle crafted from 316 stainless steel for industrial and marine use.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Suncor Round Pin Chain Shackle - 316 Stainless Steel, 5/8 in

Suncor Round Pin Chain Shackle - 316 Stainless Steel, 5/8 in

$39.99

Quantity: 1

Claim Your Seller Account

Suncor Round Pin Chain Shackle - 316 Stainless Steel, 5/8 in

Suncor Round Pin Chain Shackle - 316 Stainless Steel, 5/8 in

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Designed for heavy-duty industrial and marine applications, the Suncor Round Pin Chain Shackle offers exceptional corrosion resistance with grade 316 stainless steel construction. Featuring a drop-forged design and a working load limit of 4,000 lb, this shackle meets stringent industry standards, including Class 1, Fed Spec RR-C-271, and MIL-DTL-32655 Type IVB, ensuring reliable performance in diverse environments. Available in various sizes, this Suncor shackle is ideal for secure and durable lifting operations.

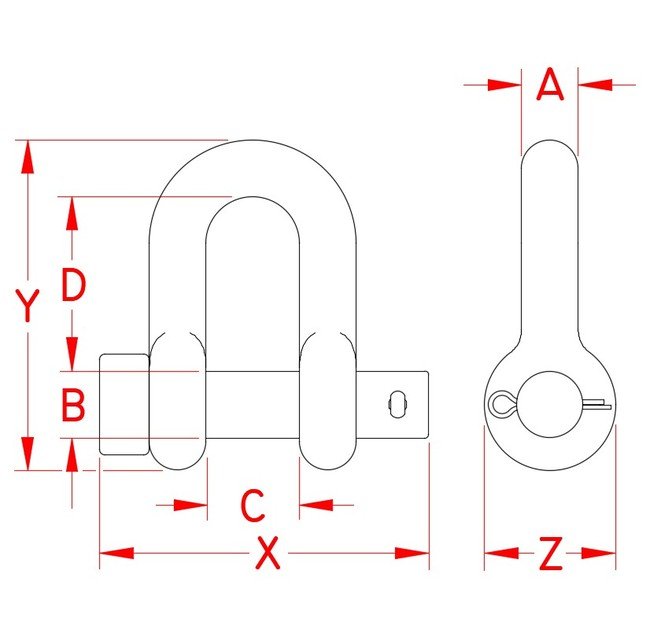

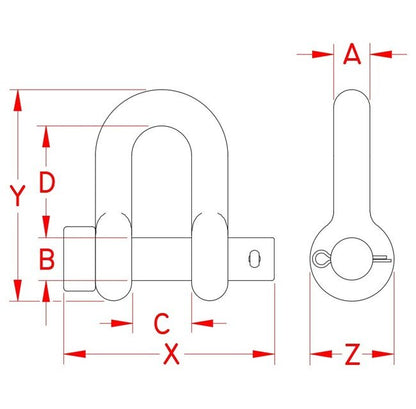

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.05 in
Specifications Dimension D
1.94 in
Specifications Dimension X
3.35 in
Specifications Dimension Y
3.64 in
Specifications Dimension Z
1.48 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
1.24 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
