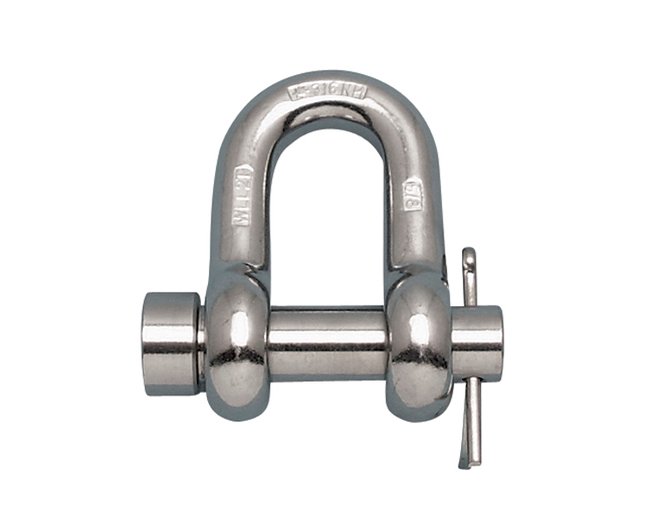

Suncor Round Pin Chain Shackle - Grade 316 Stainless Steel
Suncor Round Pin Chain Shackle - Grade 316 Stainless Steel
SKU:STA-ca1816
High-quality Suncor Round Pin Chain Shackle for industrial and marine use. Grade 316 stainless steel, 1,300 lb WLL. Fed Spec RR-C-271 compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Enhance your industrial and marine applications with the Suncor Round Pin Chain Shackle. Crafted from grade 316 stainless steel, this shackle boasts maximum corrosion resistance and durability. Featuring an oversize round pin, it ensures secure connections and has a working load limit of 1,300 lb. Compliant with Fed Spec RR-C-271, Type IVB, Class 1 standards, the Suncor Round Pin Chain Shackle is a reliable choice for heavy-duty tasks.
Product Specifications

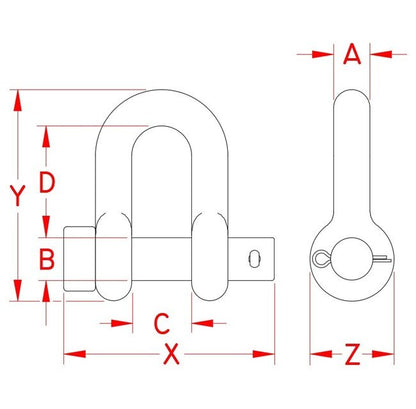

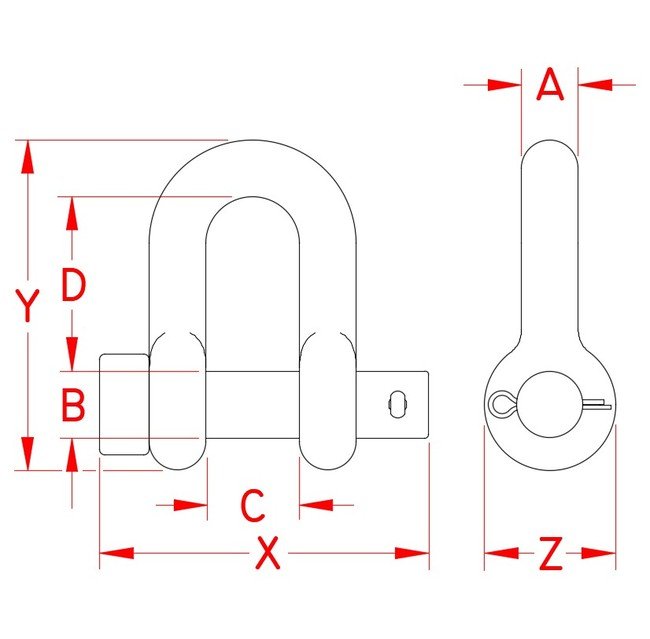

Specifications Dimension A
5/16 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.52 in
Specifications Dimension D
1.02 in
Specifications Dimension X
1.77 in
Specifications Dimension Y
1.85 in
Specifications Dimension Z
0.73 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.15 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
