Suncor Round Pin Chain Shackle - Stainless Steel, Grade 316

Suncor Round Pin Chain Shackle - Stainless Steel, Grade 316

SKU:STA-9ec2fd

Premium Suncor Round Pin Chain Shackle - Ideal for industrial and marine applications, made of grade 316 stainless steel. Compliant with top industry standards.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Suncor Round Pin Chain Shackle - Stainless Steel, Grade 316

Suncor Round Pin Chain Shackle - Stainless Steel, Grade 316

$29.99

Quantity: 1

Claim Your Seller Account

Suncor Round Pin Chain Shackle - Stainless Steel, Grade 316

Suncor Round Pin Chain Shackle - Stainless Steel, Grade 316

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

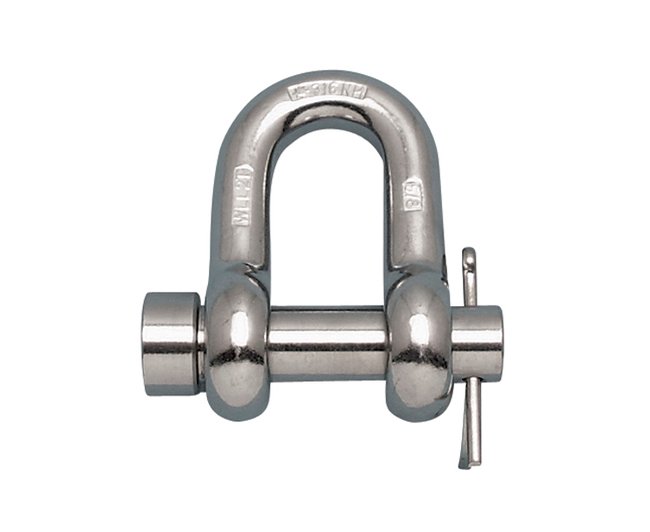

Enhance your industrial and marine applications with the Suncor Round Pin Chain Shackle. Made from premium grade 316 stainless steel, this chain shackle boasts exceptional corrosion resistance and a robust design. Featuring an oversize round pin for secure connections, it ensures maximum safety with a working load limit of 1000 lb. Compliant with Class 1, Fed Spec RR-C-271, MIL-DTL-32655, and Type IVB specifications, this shackle meets the highest standards for quality and durability.

Product Specifications

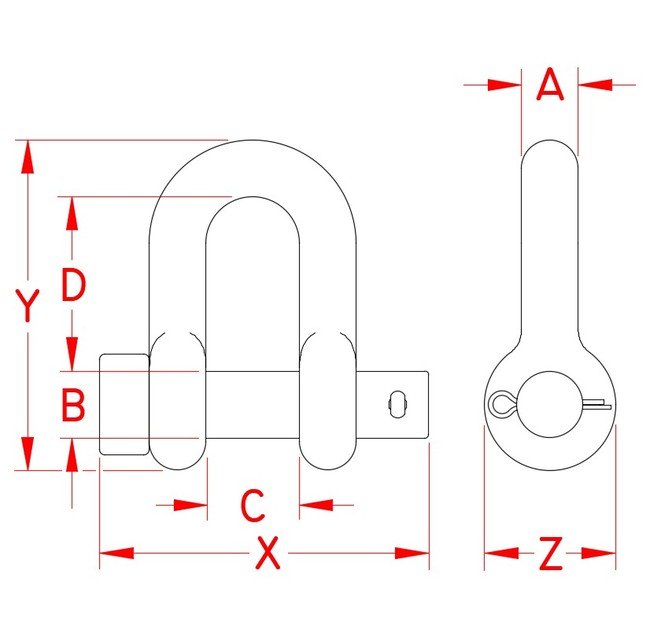

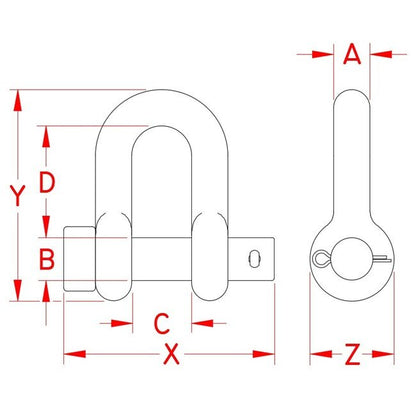

Specifications Dimension A
1/4 in
Specifications Dimension B
0.32 in
Specifications Dimension C
0.46 in
Specifications Dimension D
0.87 in
Specifications Dimension X
1.51 in
Specifications Dimension Y
1.59 in
Specifications Dimension Z
0.60 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.1 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
