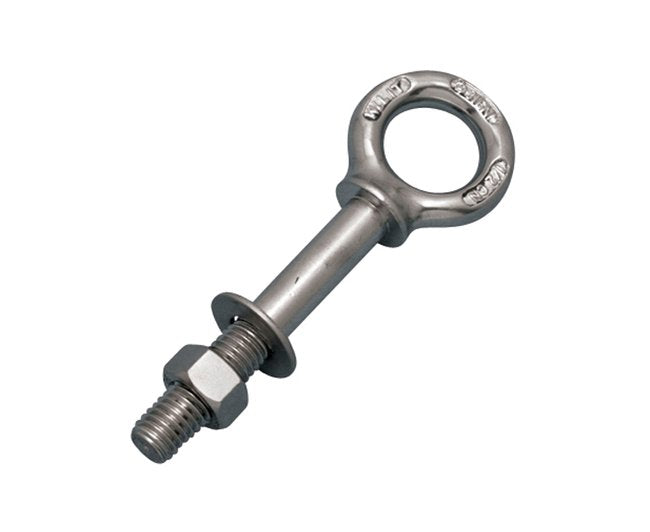

Suncor Shoulder Eye Bolt - 316-NM Stainless Steel UNC Thread
Suncor Shoulder Eye Bolt - 316-NM Stainless Steel UNC Thread
SKU:STA-5e85c4
Achieve superior corrosion resistance and durability with our 316-NM Stainless Steel Shoulder Eye Bolt, ideal for marine and industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Suncor Shoulder Eye Bolt - 316-NM Stainless Steel UNC Thread
$24.99
Quantity: 1
Claim Your Seller Account
Suncor Shoulder Eye Bolt - 316-NM Stainless Steel UNC Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine and industrial projects with the Suncor Shoulder Eye Bolt. Crafted from grade 316-NM stainless steel, this bolt offers superior corrosion resistance and durability. Compliant with ASME B30.26, it ensures safety with a Working Load Limit of 3,440 lb. Precision machined and drop forged, this eye bolt guarantees reliability for a wide range of applications.
Product Specifications

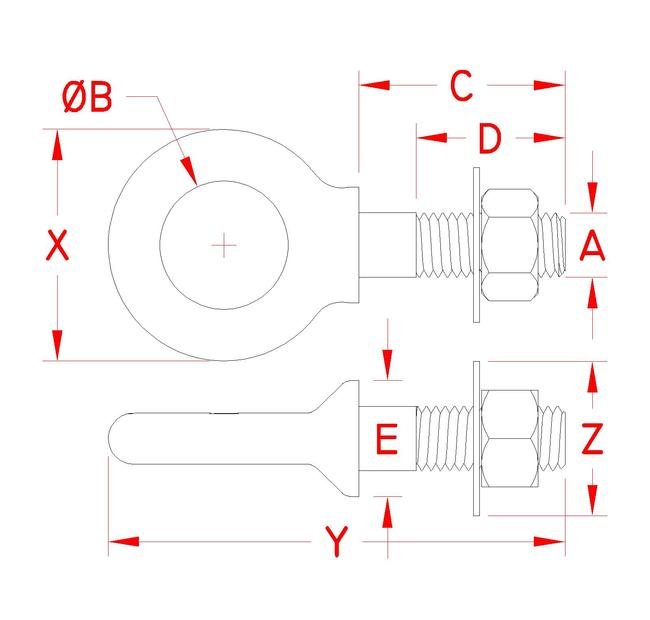

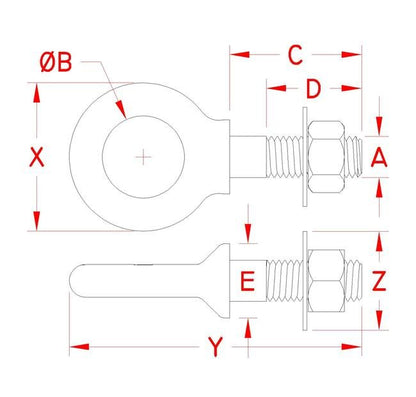

Specifications Dimension A
5/8 in
Specifications Dimension B
1.25 in
Specifications Dimension C
4.00 in
Specifications Dimension D
2.00 in
Specifications Dimension E
1.13 in
Specifications Dimension X
2.28 in
Specifications Dimension Y
6.55 in
Specifications Dimension Z
1.17 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.844 lb
Specifications Working Load Limit Wll
3,440 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
