Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread

Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread

SKU:STA-c14657

Premium Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread for Heavy-Duty Projects

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread

Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread

$24.99

Quantity: 1

Claim Your Seller Account

Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread

Suncor Shoulder Ring Bolt - Marine-Grade Stainless Steel UNC Thread

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

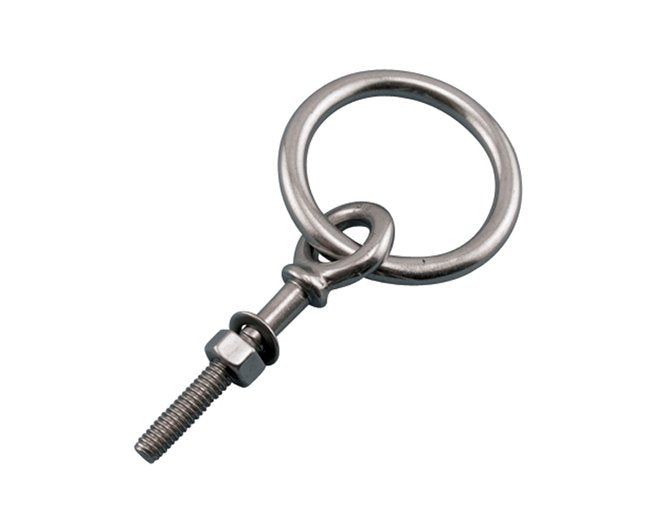

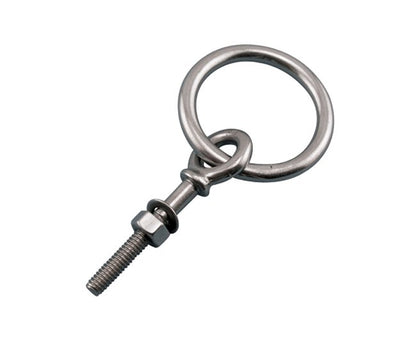

The Suncor Shoulder Ring Bolt is a premium-grade fastening solution crafted from 316 stainless steel, ensuring superior corrosion resistance and unmatched durability for marine and industrial applications. This bolt comes complete with a nut and washer, available in sizes from 1/4" to 3/4" to suit various project needs. With a working load limit of 600 lb, precision dimensions, and a weight of 0.48 lb, this ring bolt is ideal for heavy-duty use. Trust Suncor for reliability in every installation.

Product Specifications

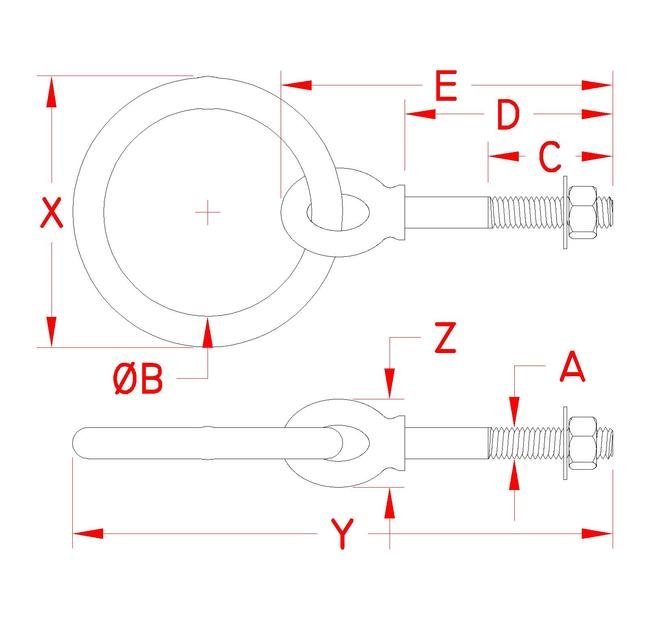

Specifications Dimension A
3/8 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.50 in
Specifications Dimension D
2.50 in
Specifications Dimension E
4.00 in
Specifications Dimension X
3.25 in
Specifications Dimension Y
6.40 in
Specifications Dimension Z
0.83 in
Specifications Fabrication Type
Drop Forged | Wire Formed
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.48 lb
Specifications Working Load Limit Wll
600 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
