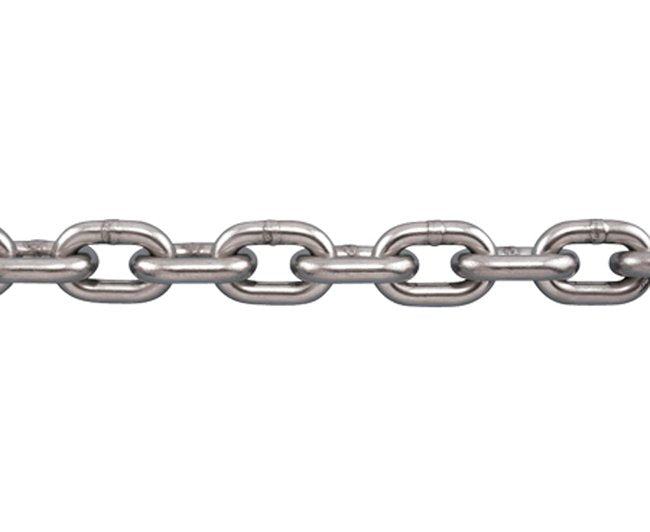

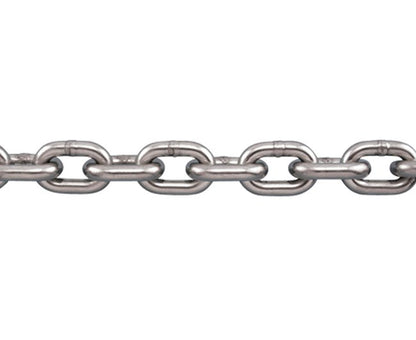

Suncor Stainless 316L S4 NACM Industrial Chain

Suncor Stainless 316L S4 NACM Industrial Chain

CHA-063647

High-quality Suncor Stainless 316L industrial chain, made in the USA to 'G4' dimensions. Meets MIL-DTL-32655 & NACM standards.

$49.99
$49.99
Sale

Initiate Order

Suncor Stainless 316L S4 NACM Industrial Chain

Suncor Stainless 316L S4 NACM Industrial Chain

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless 316L S4 NACM Industrial Chain

Suncor Stainless 316L S4 NACM Industrial Chain

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Stainless 316L S4 National Association of Chain Manufacturers (NACM) Industrial Chain is expertly crafted in the USA to 'G4' dimensions. Made from high-grade 316L stainless steel, it offers exceptional strength and durability for various industrial applications. This chain meets MIL-DTL-32655 standards and complies fully with NACM specifications, ensuring reliable performance and safety.

Product Specifications

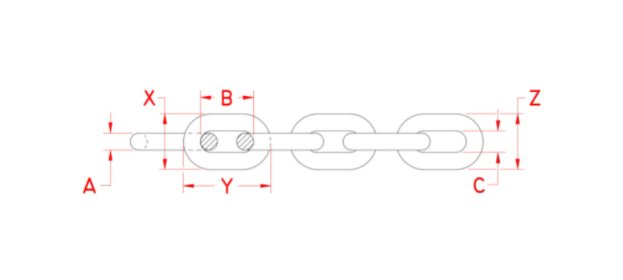

Dimensions In Dimension A
0.28 in
Dimensions In Dimension B
0.84 in
Dimensions In Dimension C
0.40 in
Dimensions In Height X
0.94 in
Dimensions In Length Y
1.40 in
Dimensions In Width Z
0.94 in
Note Note
Suncor® grade S4 chain is made to "G4" dimensions. meets the requirements of: MIL-DTL-32655. it fits many standard U.S. windlasses and industrialApplications. this chain complies fully with all requirements of the U.S. national association of chain manufacturers’ (nacm’s) specifications.All dimensions are nominal (± 3%) and are subject to change without notice.Meets G4 Size
Specifications Basic Load Bl
8,000 lb
Specifications Carton Quantity
1
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
9/32 in | 1/4 in
Specifications Upc Code
791506067504
Specifications Weight Wt
0.67 lb/ft
Specifications Working Load Limit Wll
2,000 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
