Suncor Stainless S5 Grade 50 Lifting Chain, 5/16-in Size

Suncor Stainless S5 Grade 50 Lifting Chain, 5/16-in Size

CHA-de3c34

Discover the robust Suncor® Stainless S5 Grade 50 Lifting Chain for secure overhead lifting. Calibrated to grade 80 dimensions and compliant with MIL specifications.

$79.99
$79.99
Sale

Initiate Order

Suncor Stainless S5 Grade 50 Lifting Chain, 5/16-in Size

Suncor Stainless S5 Grade 50 Lifting Chain, 5/16-in Size

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless S5 Grade 50 Lifting Chain, 5/16-in Size

Suncor Stainless S5 Grade 50 Lifting Chain, 5/16-in Size

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

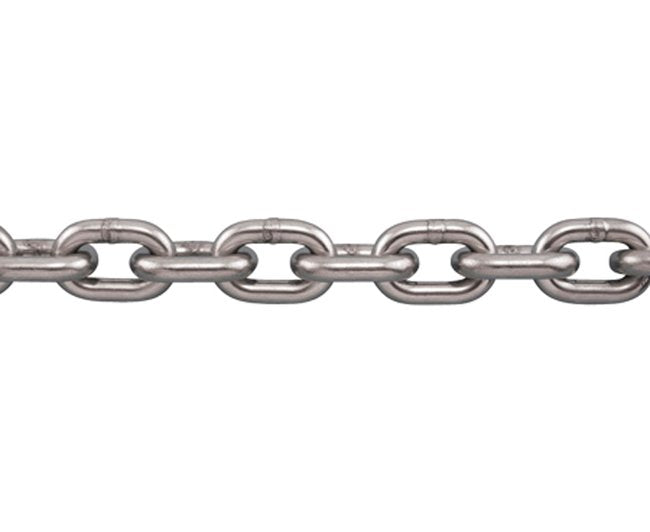

The Suncor® Stainless S5 Grade 50 Lifting Chain offers superior strength and durability, made from 316L stainless steel with a Working Load Limit (WLL) of 2,700 lb. Calibrated to grade 80 dimensions and meeting MIL-DTL-32655 requirements, this chain ensures safety and reliability. Designed for overhead lifting applications, each component is rated for secure performance. Never exceed the WLL to maintain safety standards.

Product Specifications

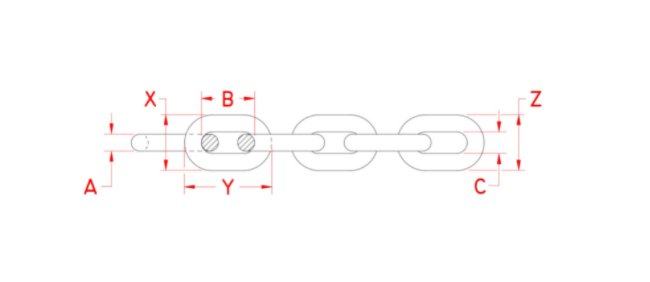

Dimensions In Dimension A
0.32 in
Dimensions In Dimension B
0.95 in
Dimensions In Dimension C
0.45 in
Dimensions In Height X
1.11 in
Dimensions In Length Y
1.55 in
Dimensions In Width Z
1.11 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead lifting
Specifications Basic Load Bl
10,800 lb
Specifications Carton Quantity
1
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
5/16 in
Specifications Upc Code
791506067580
Specifications Weight Wt
0.98 lb/ft
Specifications Working Load Limit Wll
2,700 lb
CAGE
0T9L4
NAICS
332510
PSC
4030
