Suncor Stainless Steel Anchor Base with Shackle

Suncor Stainless Steel Anchor Base with Shackle

SKU:STA-25e652

High-quality stainless steel anchor base with shackle for secure lifting applications. Corrosion-resistant, versatile, and durable. Sizes from 1/4" to 1", 1000 lb WLL.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Base with Shackle

Suncor Stainless Steel Anchor Base with Shackle

$34.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Base with Shackle

Suncor Stainless Steel Anchor Base with Shackle

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

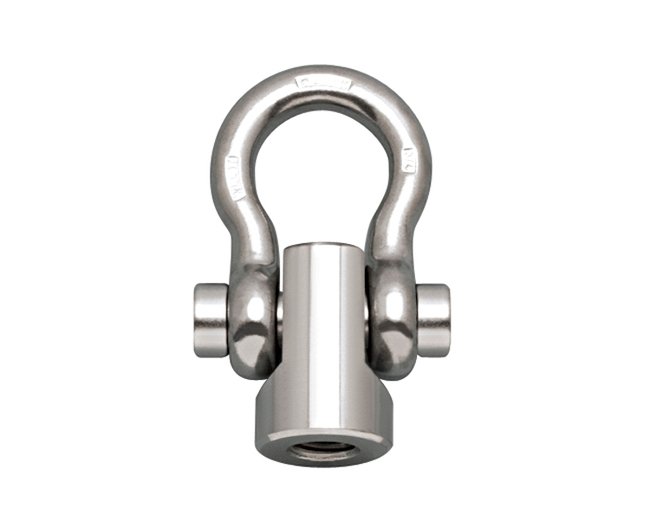

The Suncor Stainless Steel Anchor Base with Shackle is a premium-grade 316 stainless steel hoist assembly designed for maximum corrosion resistance and durability. This versatile anchoring solution features a fixed shackle with 180-degree pivoting capability and an anchor base that can be securely fastened to provide a full range of motion. Ideal for lifting applications requiring a reliable attachment point, this anchor base with shackle is available in sizes ranging from 1/4" to 1", accommodating various lifting needs with a working load limit of 1000 lb. Precision machined and drop forged, this Suncor exclusive product ensures top-quality performance and longevity in diverse industrial settings.

Product Specifications

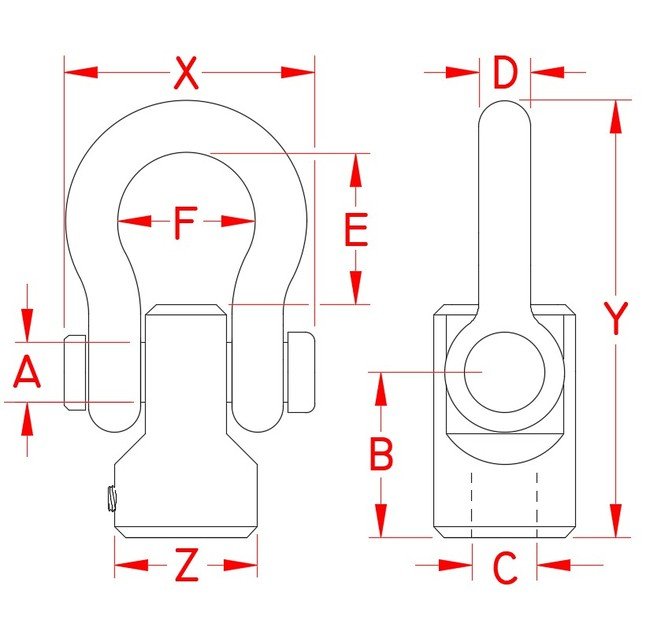

Specifications Dimension A
0.31 in
Specifications Dimension B
1.00 in
Specifications Dimension C
3/8"-16
Specifications Dimension D
0.25 in
Specifications Dimension E
0.91 in
Specifications Dimension F
0.79 in
Specifications Dimension X
1.30 in
Specifications Dimension Y
2.54 in
Specifications Dimension Z
0.75 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
1/4 in
Specifications Suncor Exclusive
Yes
Specifications Weight
0.22 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
