Suncor Stainless Steel Anchor Base with Shackle

Suncor Stainless Steel Anchor Base with Shackle

SKU:STA-e4bd14

Durable Suncor Stainless Steel Anchor Base with 180° Pivoting Shackle for secure lifting applications

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Base with Shackle

Suncor Stainless Steel Anchor Base with Shackle

$79.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Base with Shackle

Suncor Stainless Steel Anchor Base with Shackle

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

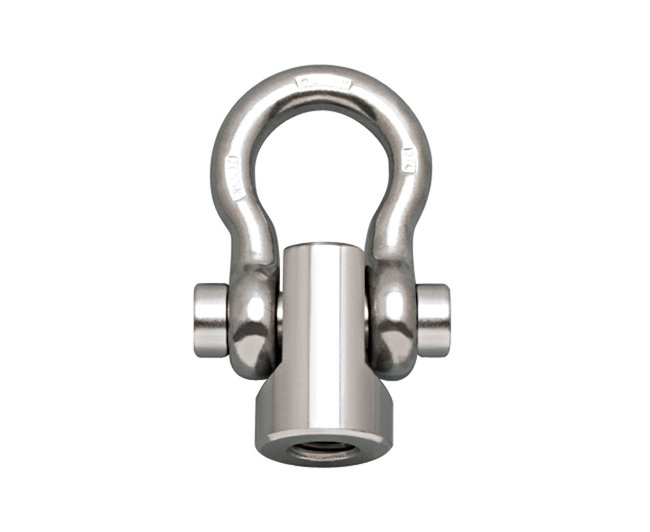

The Suncor Stainless Steel Anchor Base with Shackle is a robust hoist assembly component designed for maximum durability and corrosion resistance. Made from grade 316 stainless steel, it offers exceptional strength for lifting applications. This anchor base allows secure attachment to objects lacking natural lifting points, featuring a 180-degree pivoting shackle with full range of motion. Precision machined and drop forged, it ensures reliability and safety in challenging environments.

Product Specifications

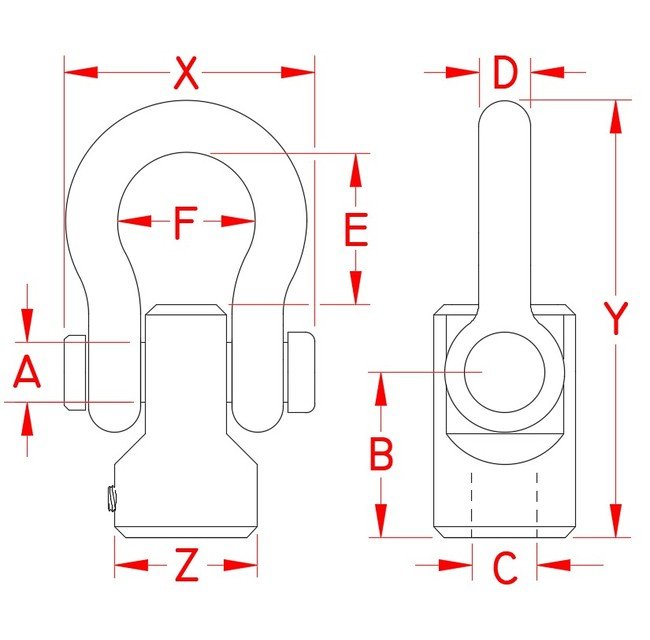

Specifications Dimension A
1.00 in
Specifications Dimension B
2.34 in
Specifications Dimension C
1-1/8"-7
Specifications Dimension D
0.88 in
Specifications Dimension E
2.78 in
Specifications Dimension F
2.24 in
Specifications Dimension X
4.10 in
Specifications Dimension Y
7.16 in
Specifications Dimension Z
2.50 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
7/8 in
Specifications Suncor Exclusive
Yes
Specifications Weight
7 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
