Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch

Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch

SKU:STA-50dc53

High-grade Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch for secure and flexible lifting applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch

Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch

$49.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch

Suncor Stainless Steel Anchor Base with Shackle - 5/8 inch

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

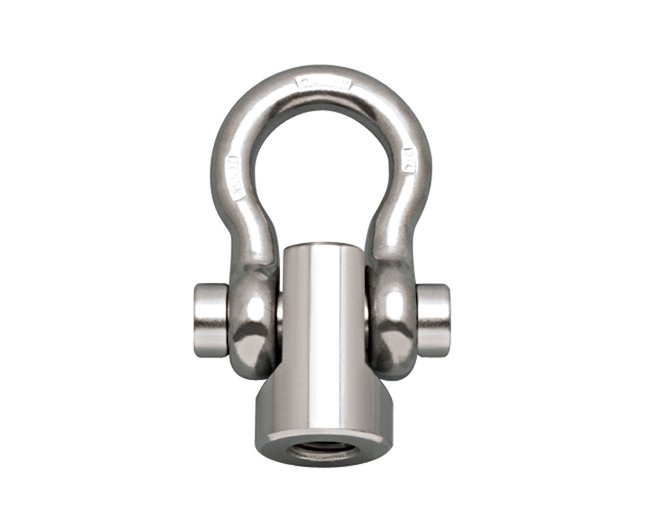

The Suncor Stainless Steel Anchor Base with Shackle is a premium hoist assembly component crafted from grade 316 stainless steel, ensuring unparalleled corrosion resistance and durability. Designed for various lifting applications, this anchor base offers a secure attachment point with its fixed shackle and set screw feature. With a 180-degree pivoting shackle for flexibility and a working load limit of 4,000 lb, this Suncor exclusive product provides exceptional reliability and performance. Ideal for lifting points without natural attachments, this anchor base guarantees secure and precise lifting operations in diverse industrial settings.

Product Specifications

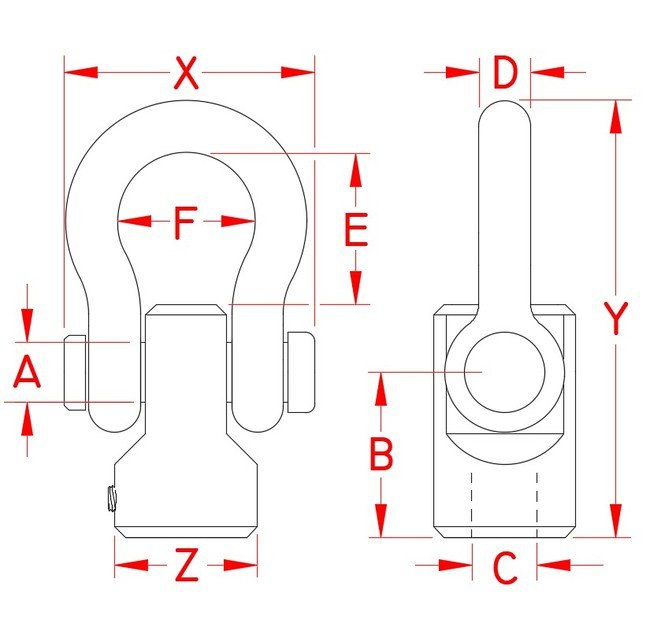

Specifications Dimension A
0.75 in
Specifications Dimension B
1.86 in
Specifications Dimension C
7/8"-9
Specifications Dimension D
0.63 in
Specifications Dimension E
2.00 in
Specifications Dimension F
1.67 in
Specifications Dimension X
3.02 in
Specifications Dimension Y
5.29 in
Specifications Dimension Z
1.75 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
5/8 in
Specifications Suncor Exclusive
Yes
Specifications Weight
2.64 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
