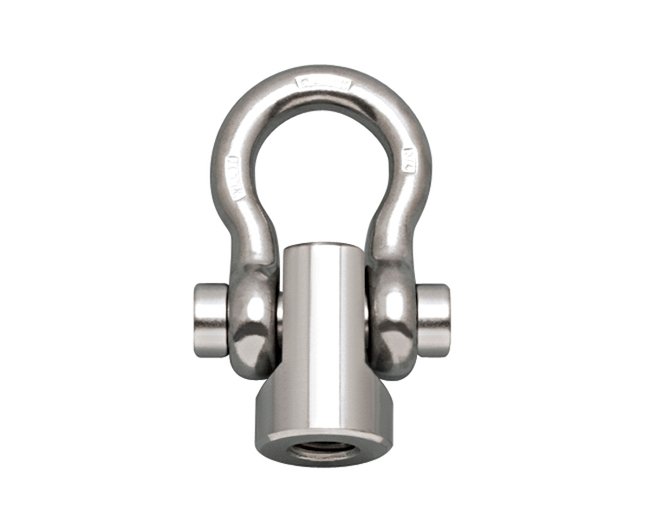

Suncor Stainless Steel Anchor Base with Shackle - 7/16 in

Suncor Stainless Steel Anchor Base with Shackle - 7/16 in

SKU:STA-62a078

Premium grade 316 stainless steel Anchor Base with Shackle, 2000 lb WLL, set screw attachment, 180-degree pivoting shackle, ideal for heavy-duty lifting applications.

Regular price $35.99
Regular price Sale price $35.99
Sale

Initiate Order

Suncor Stainless Steel Anchor Base with Shackle - 7/16 in

Suncor Stainless Steel Anchor Base with Shackle - 7/16 in

$35.99

Quantity: 1

Claim Your Seller Account

Suncor Stainless Steel Anchor Base with Shackle - 7/16 in

Suncor Stainless Steel Anchor Base with Shackle - 7/16 in

$35.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Suncor Stainless Steel Anchor Base with Shackle is a premium hoist assembly component designed for heavy-duty lifting applications. Constructed from grade 316 stainless steel, this anchor base ensures exceptional corrosion resistance and long-lasting durability. With a working load limit of 2000 lb, it offers secure attachment points for various objects without natural connections. The base features a set screw for easy and reliable stud attachment, while the shackle provides 180-degree pivoting capability for enhanced flexibility. Ideal for industrial, construction, and marine use, this anchor base guarantees reliable performance and safety.

Product Specifications

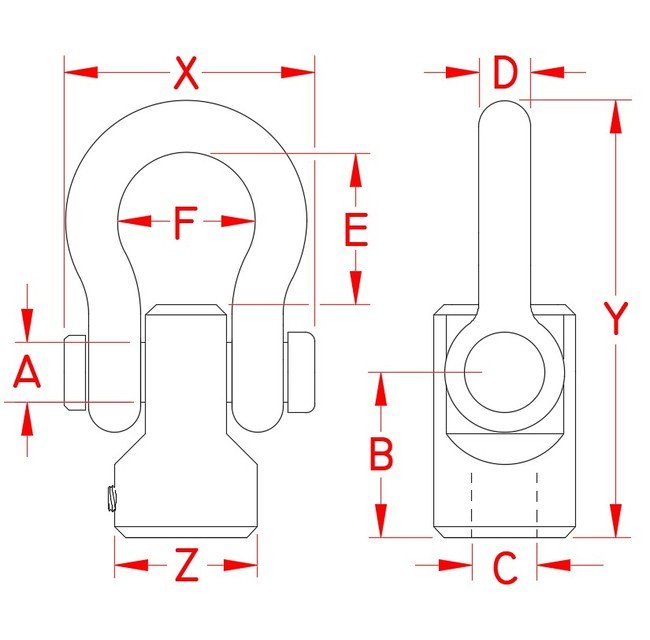

Specifications Dimension A
0.50 in
Specifications Dimension B
1.56 in
Specifications Dimension C
5/8"-11
Specifications Dimension D
0.42 in
Specifications Dimension E
1.14 in
Specifications Dimension F
1.14 in
Specifications Dimension X
2.39 in
Specifications Dimension Y
3.97 in
Specifications Dimension Z
1.38 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
7/16 in
Specifications Suncor Exclusive
Yes
Specifications Weight
1.05 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
